Ribbon Shuttle Seat Use Steel Paper Gear time:2025-06-04 16:53:07 click:7284 keywords:Ribbon Shuttle,Gear,Hat Belt Machine Accessories,Ribbon Shuttle Seat,Red Steel Paper Gear
description:

Huixian Xinda Textile Machinery Accessories provides hat belt machine accessories. The ribbon shuttle seat is equipped with 17 tooth and 19 tooth red steel paper gears. The transmission gear of the ribbon machine shuttle seat is straight toothed and compressed from red steel paper material. The inner hole diameter of the two specifications of gears is the same, which is 23.5 millimeters. The 17 tooth red steel paper gear is used for the shuttle seat of the 10 tooth curved horseshoe shuttle, and the outer diameter of the gear is 53.6 millimeters with a thickness of 6.8 millimeters; We provide some Guangye machine spur gears, hat belt machine accessories, six shuttle ribbon accessories, shuttle seats, and red steel paper gear products.

Ribbon Weaving Machine Gear Red Steel Paper 17 Teeth and 19 Teeth

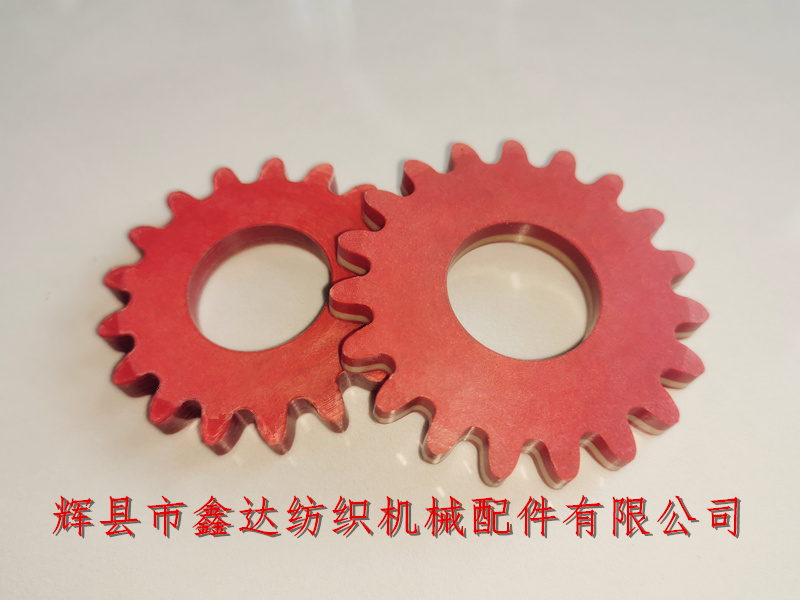

On the left side of the picture is a 19 tooth red steel paper gear, with an overall thickness of 7mm and an outer diameter of 58.6mm. The modulus is 2.79, which is 58.6 ÷ (19+2)=2.79. Right 17 tooth wheel: 53.6 ÷ (17+2)=2.82, which means the modulus is 2.82.

Ribbon machine accessories shuttle seat gear

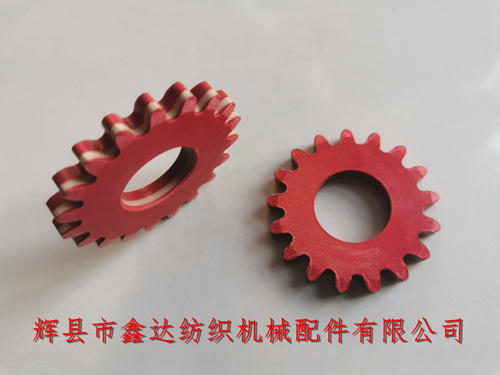

The above figure shows the side elevation and front view of the shuttle seat gear. The colors of the red steel paper are white, green, red, and brown; Gears made of red steel paper material have the advantages of low noise, durability, and electrostatic shielding. However, their disadvantages are complex production processes and high costs. There are two types of hat belt machine shuttle seats: single gear and double gear. Compared to single gear shuttle seats, the shuttle with double gear matching is longer.

Red steel paper gear textile shuttle seat accessories

The weight of a single 19 tooth red steel paper gear is 17 grams, and the weight of 17 teeth is 14 grams; If you need to purchase accessories for hat belt machine, ribbon shuttle seat with 17 tooth and 19 tooth red steel paper gears, hat belt weaving machine accessories, ribbon accessories, wooden shuttle seat, red steel paper gears, or other specifications of red steel paper products, you can contact Mr. Yang from our company for consultation.
