Huixian Xinda Textile Machinery Accessories Co., Ltd. has long supplied China's textile accessories L76 take-up handle. Power looms are generally woven by manual shuttle changing. The total length of the take-up handle L76 is 23.8 cm, the width is 36 mm, the height is 80 mm, the thickness of the handle is 8 mm, the length of the long round hole is 32 mm, the width is 21 mm, and the weight of a single take-up handle is about 0.4 kg.

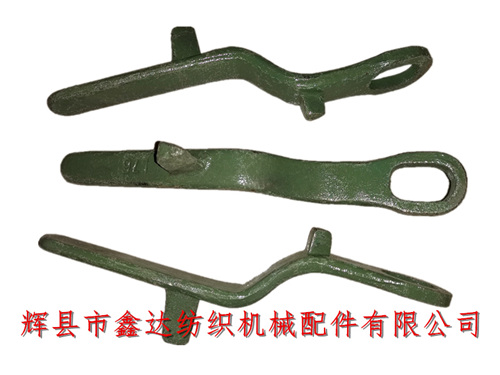

L00-5 (bridge gear core) is installed at the long round hole of the take-up handle of China textile accessories L76 and fixed on the L8 core foot of the loom, which is located at the lower right side of the loom (close to the wall panel). The above figure is the side view and top view of the take-up handle.

The winding handle L76 of textile accessories is not divided into left hand and right hand. During installation, use a set gauge or steel ruler to determine the upper edge of the core foot L8, which is 279mm away from the upper edge of the wall panel of the loom. The upper end of L8 stop is close to the inner edge of the wallboard, and the lower end is close to the outer edge of the wallboard.

Textile accessories L76 take-up handle is applicable to power looms (including 1511, 1515, GA615 and other models). The door width is 28 inches, 32 inches, 36 inches, 44 inches and 56 inches, as shown in the above figure. The height of triangular column is 31mm, the length of two waist is 17mm, and the length of triangular bottom is 10.5mm.

Textile accessories mainly include two categories: textile machine accessories and loom accessories. L76 take-up handle belongs to loom accessories and is suitable for domestic common shuttle loom. Each loom uses 1 piece and the package is 10 pieces per string. Welcome to contact our company for purchase!
