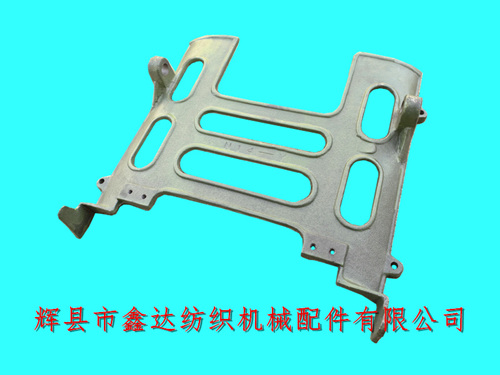

Huixian Xinda Textile Machinery Parts Co., Ltd. provides Autoc Loom Parts N14 Magazine Box Back,1515 Magazine Box,GA615 Automatic Loom Parts,1511 Back Magazine Box,Loom Parts, The rear of the shuttle magazine box(N14) is connected to the 1511-N41 or GA615-6907 movable shaft for use. The material of the rear of the shuttle magazine is gray pig iron HT15-33, with dimensions of 34 centimeters in length and 35 centimeters in width. The width on one side of the upper part is 9 centimeters, and the height in the middle position is 15 centimeters.

The installation gap between the rear N14 of the shuttle and the movable shaft (N41 or 6907) is ≤ 0.6 millimeters, the wear depth of the shuttle tip is ＜ 3mm, the vertical tolerance of the shuttle (N14*N15) is 0.5 millimeters, and the lateral tolerance is 0.8 millimeters. After fitting, the interior of the shuttle is 0.8 millimeters wider than that of the new shuttle.

The appearance of the rear and front parts of the shuttlecock is similar, which can be distinguished by the ears at the rear and the fixing holes below (magazine leg N16, N17), or by looking at the protruding part of the fixed ears of the movable shaft.

The weight of a single N14 shuttle is 2.93 kilograms, packaged in bundles of 5 pcs, and each weaving machine uses 1 unit. The rear of the N14 shuttle is not divided into left and right hands, but the front of the N15 shuttle is divided into left and right hands.

If you need to purchase N14 shuttle magazine rear textile machine cast iron parts universal automatic shuttle change-1511 shuttle Magazine Box, 1515 automatic shuttle changers, GA615 loom cast iron parts, domestic textile machine parts, universal shuttle weaving machine accessories and other products, please contact Mr. Yang from our company for consultation.
