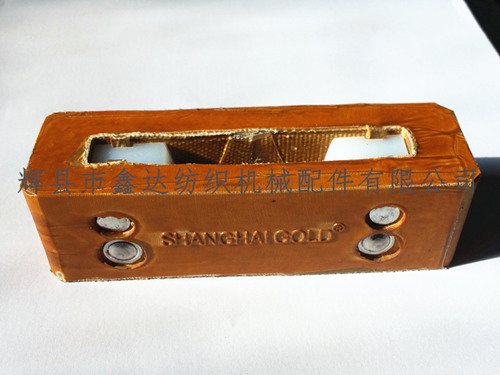

Textile S5 pickers,GOLD shuttle loom pickers are mainly used for shuttle loom. Its function principle is that the skin knot hits the shuttle and provides power for shuttle flight. The shape of S5 skin knot is cuboid, two flat tongues (lining) are installed inside. The outer side of textile skin knot is fixed by two rivets, and the product application market is Southeast Asia.

The S5 textile picker of SHANGHAI GOLD has symmetrical fixed grooves in the inner kernels. The material of the knot is composed of NBR and canvas, while the leather tongue material is modified macromolecule nylon material.

Textile equipment - S5 shuttle knot middle cavity is used for shuttle board through, depending on the rapid swing of the shuttle rod to provide the corresponding power or buffer stopping force.Textile Gold Pickers.

Packaging specifications of textile S5 pickers: carton, 100 pieces/case, color: light yellow, shape size of knot on S5 loom (parameters): width 34 mm, height 34 mm, length 117mm, inner cavity size: 47.5 mm*11 mm, product starting order more than 1000, delivery time 25 days. Loom S5 leather knot, S-5 shuttle knot procurement please contact our company to ensure product quality and prompt delivery.
