Our company provides Xinda Textile Parts I16 Horn-Shaped Lever, material: gray iron HT15-33, textile machinery parts I16D horn handle total length 18cm, round hole diameter 27mm, arc hole width 9mm, tail screw hole M8. Our company supports the rough processing of weaving machine parts, the opening of casting parts for textile spare parts, the wholesale sales of woven machine parts, and serves customers in all cities with integrity.

Installation of loom: lift the hook K11 of rotor bar, hook the sizing block K83, turn the bent shaft f38 to the front dead center, push the horn handle I16 at the head end of rotor bar K10, and the switch connecting rod I12 should protrude the gap of supporting foot I2 by 2.4mm. The weight of a single product is about 0.25kg.

The Textile Parts I16 Horn-Shaped Lever is divided into left hand and right hand. The left hand is the right hand "R", the right hand is the left hand "L", and the distance from the center of the round hole to the top of the above is 138mm.

One I16 Horn-Shaped Lever is used for each loom, and the switch position of the loom is installed. It is an accessory of part I starting and braking device, which is connected with the vertical bar at the i14 switch side.

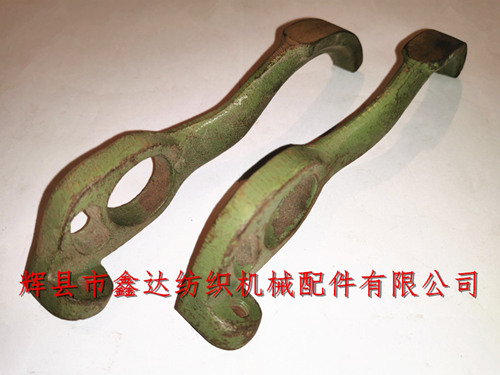

The figure above is a side view of I16. About accessories packaging Description: each string of 20 pieces (the same hand), our company provides Xinda weaving machine accessories, there are a wide variety of shuttle machinery accessories, textile accessories standard parts wholesale sales, to solve professional accessories supply and channel problems for customers.

If you want to buy left and right hand Textile Parts I16 Horn-Shaped Lever, you can consult our sales department. We are a professional wholesale supplier of weaving machinery accessories (horn handle, weaving machine accessories).
