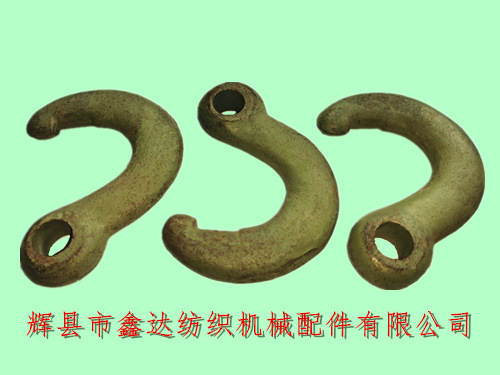

Huixian Xinda Textile machinery accessories provide K75 loom accessories clip spring hook, material HT15-32, each loom uses two, 1511 and 1515 are connected with K76 reed clamp shaft spring hook foot, GA615 type is connected with 1515-7512 or 7513, so K75 reed clip spring hook is a universal loom accessory, the clearance between K75 reed clip spring hook and stop catch screw core K33 is ≤ 0.8mm, the gap between front and reed frame wood is 3mm, and the edge is between The clearance is 0.8mm (the spring hook of reed clamp cannot touch the reed clamp shaft).

The diameter of inner hole of K75 reed clip spring hook is 13mm, width is 73mm, thickness of round hole is 14mm, length of notch is 15mm, weight of single K75 spring hook is about 0.15kg.

Installation instructions: the upper fulcrum of reed clamp spring hook k75 is in front of the upper center of reed clamp shaft, so that the tension of reed spring can be applied to the lower beam of reed. At the same time, it is required that the front edge of round fulcrum of K75 shall not touch the front of groove at the bottom of reed. If the two contact, the force exerted by reed spring on reed lower beam will be offset by the wood in front of reed groove, resulting in reed loosening Generally, a gap of 3.2 mm is required.

If you want to buy Textile spring hook, K75, loom accessories, textile pig iron and other products, please contact our company, the product support batch order, warmly welcome customers from all over the world to consult and purchase!
