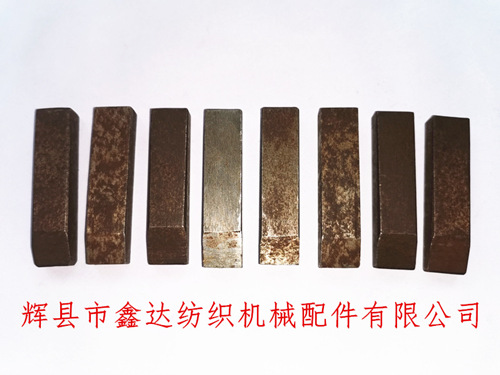

D16 loom brake wheel key pin belongs to textile key pin (flat key), the surface slope of key pin is 1:100, material: 45 ᦇ steel, each loom uses 3 pieces (2 for F8 shuttle tray, 1 for 4118 or f216), the length of key pin is 5cm, the width is 12mm, the clearance between four sides of key pin and shaft and wheel disc is less than 0.05mm after installation.

The package of D16 is transparent bag with 50 pieces in each package. Installation instructions: when installing the shuttle disc F8, it is necessary to check the accessories - key D16 of the shuttle tray. Put the key D16 in the keyway, and rivet both sides with a chisel. Put the F8 rotor disk on the treadle shaft and push it by hand, which should reach 1 / 3 of the total length of the key pin, and then knock in 1 / 3 with a small hammer, and knock in the remaining 1 / 3 during the formal installation. Then knock out the shuttle tray, the contact surface of the key should be more than 70%, and the pitch of the key pin should be consistent with the other part.

Check and match the 72 teeth (E2) key pin E8, put E2 on the shaft, push the key pin by hand, which should reach 1 / 3 of the total length of the key pin, and then knock it tightly with a small hammer. The inner side of the hook head should be exposed 9.5-25 mm. Then pull out the key pin. According to the contact area of more than 50%, the slope of the key pin is consistent with the parts.

If textile enterprises need to purchase D16 key nail, brake wheel key nail, loom key nail, D16 loom brake wheel key nail product, we can contact our company for consultation, welcome to discuss!
