Shuttle Loom Parts Front Snap Guard K13
Shuttle Loom Parts Front Snap Guard K13 time:2022-07-17 19:00:40 click:8429 keywords:Front Snap Guard,Shuttle Loom Parts,Textile Machine Parts
description:

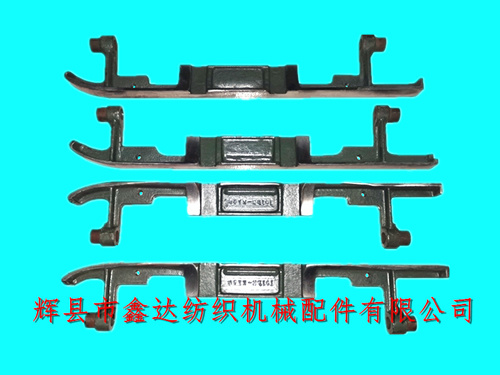

Huixian Xinda Textile Machinery Accessories Co., Ltd. provides 1511 Shuttle Loom Parts Front Snap Guard K13 all year round. The shuttle loom shuttle box assembly-K13 front brake rail has a total length of 52 cm and a width of 92.5mm. The inner diameter of the shaft holes on both sides is 16mm, the outer diameter of the polished round surface is 22mm, and the center distance of the two screw holes is 31.6 cm. The material of the shuttle box front brake rail K13 is HT15-33, which is divided into left hand and right hand. Each loom uses one.

Textile machinery parts Front Snap Guard K13_ Loom shuttle box accessories_ Textile accessories K13

1511 type K13 front brake rail is connected with K61 (outer support foot of front brake rail) and K201 (support foot of shuttle box cover). The angle between front brake rail K13 and shuttle box bottom plate K15 is 90 °, and the allowable difference is -0.1 mm (check with a gauge and micrometer, only less than 90 °).

Textile machinery accessories_ K13 loom front brake rail_ 1511 loom spare parts

There is a distance of 1.6~3 mm between the inner end of the Front Snap Guard K13 and the upper plane of the bracket K00-3 in the front convex plate; The gap between the front brake rail and the core K41 is not more than 0.4 mm (check with steel wire); The rear side of the inner end of the front brake rail K13 protrudes from the rear side of the inner bracket K00-3 of the front convex plate by no more than 0.4 mm.

1511 front brake rail_ Textile machinery parts_ K13 front snap guard

The shuttle is between the front brake rail K13 and the front convex plate K64. When the distance between the upper plane of the Front Snap Guard K13 and the adjusting screw is less than 1.6 mm, it is easy to make the shuttle fuzz and wear, and the outer supporting foot head of the front brake rail is easy to break, which is more than 2.4mm. When changing the shuttle, the front brake rail jumps too high, and the shuttle collides with the shuttle box cover plate.

44 textile machine accessories_ 1511 textile machinery accessories_ Loom front brake rail K13

The outer end face of the Front Snap Guard K13 is flush with the outer end face of the outer support leg K00-2 of the front convex plate, with a lateral movement of 0.4 mm left and right. The front brake rail fitting K13 of the shuttle box of 1511 type 44 inch single beam loom can also be used for 1511-56 type single beam loom equipment, and the installation and use requirements are the same.

Loom accessories K13 front brake rail_ 1511 shuttle box accessories_ Shuttle loom accessories

The weight of the Front Snap Guard K13 of a single shuttle box is about 1.7 kg, the thickness of the oil filling hole at the end is 29mm, and the two long polished surfaces of the front brake rail are in a right angle shape. The thickness of both sides of this position is 21.3mm, and the thickness of the middle position is 23.5mm. If you need to purchase the front brake rail accessories K13 of the shuttle box of 1511 type 44 inch single beam loom, or other loom accessories, front brake rail, 1511 accessories, 44 accessories, shuttle box components and other products, please contact Mr. Yang of our company for details!
