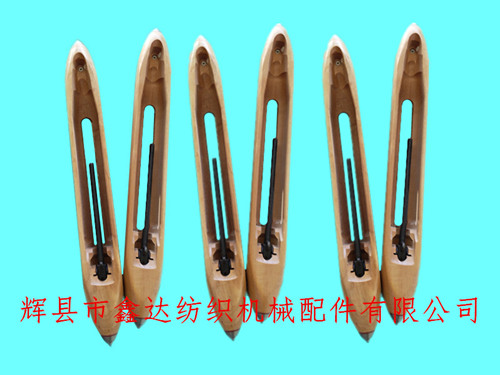

Xinda Textile accessories provides 380 wooden shuttles - single rod shuttle core with clip shuttles, with min order quantity of 300. The overall dimensions of the shuttle of this loom are: the length of the shuttle is 38cm, the outer width of the bottom of the shuttle is 44mm, the height is 34mm, and the side wall of the shuttle has a weft detection hole. The wood shuttle is made of 1:1.15 oil impregnated wood shrinkage material. The wood shuttle manufacturer Xinda can provide nearly 70 kinds of textile wood shuttles Products.

The three porcelain eye band clip wooden shuttle is designed to prevent weft shrinkage. The weft tube is 22 cm long with a straight neck (16mm). The shuttle is divided into left hand shuttle and right hand shuttle (according to the direction of 86.5 ° side of the shuttle). The weight of a single shuttle is about 0.42kg, and each box is packed with 50 pieces.

The purpose of adding clips on both sides of the core is to protect the wear of the shuttle. This design is generally aimed at the frequent changing of the bobbin and preventing the bobbin core from swinging from the left to the right. The porcelain eye is different from the ordinary 9 * 16mm, and the small porcelain eye is used for matching.380 wooden shuttle, clip shuttle, 380 shuttle.

Loom shuttle, filter shuttle and textile industrial filter shuttle are designed according to the materials and characteristics of weaving products. The diameter of the inner hole of the weft tube is between 8-8.5mm. Our company has long produced various kinds of textile machine wooden shuttles, old-fashioned traditional loom shuttles, 38 cm wood shuttles, industrial shuttles, canvas shuttles, glass fiber shuttles, etc.
