Shuttle loom fittings, Textile Fittings after stop, stop warp fittings cover all parts of the O part series of 1515 loom, O00-1 swing bar, O00-2 stop link, O00-3 stop warp bar, angle cap link, stop warp rack bracket foot O5, joint rod O7, joint rod hanger foot O10, motion cam O13, rocker rod O16, stop warp rack middle partition board, stop warp rack middle partition board, angle cap connecting rod Stopping rod (bar), etc.

Material: HT15-32 gray iron, weft cam parts of textile machine, inner hole 42mm, position: the bending axis rotates to the front slightly downward, the switching side throws shuttle rotor F11 to the back of the machine, the reed is 165mm from the inside of the breast beam, the large radius of weft cam E4 is slightly below the front of the machine, and the left and right sides are level with the weft hammer rod J1.

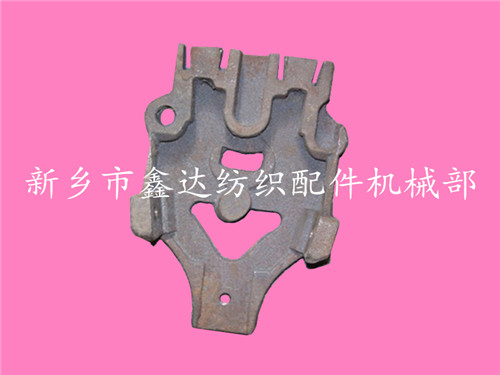

Loom warp stop hanger arm O101, O102 and this backhand. Installation location: The distance between front and back and front edge of wallboard is 210 mm, and the distance between front and back edge of wallboard and high and low edge of wallboard is determined according to technological design. XD loom accessories, textile accessories, warp stop, warp stop accessories, shuttle loom parts.
