Huixian Xinda Textile Machinery Parts Co., Ltd. provides Sulzer projectile accessories P7100 weft mixing clip (upper clip, lower clip),Sulzer Parts P7100 Upper Gripper D1 Smooth. The total length of the clip is 39mm, the width of the front "7" prefix is 3mm, the inner diameter of the middle hole of the clip is 4mm, the outer width is 6.8mm, the thickness is 2.4mm, the thickness below the "7" prefix is 1.2mm, and the weight of a single projectile projectile clip is 2g. The Sulzer mixed weft yarn clamp is a commonly used component, and the quality of this component determines whether it is installed smoothly and the length of its service life.

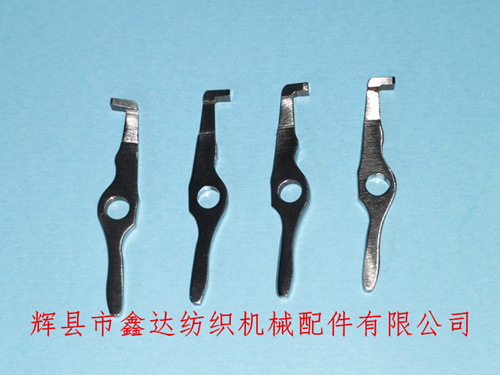

The above picture is a multi view image of P7100 mixed weft yarn clamp. D1 yarn clamp is divided into several specifications: flat mouth (911 319 286/911 319 287), hole type (911 319 288/911 319 289), and fine teeth (911 319 322/911 319 323).

The packaging of the P7100 D1 mixed weft yarn clamp is a transparent bag, with one upper and one lower clamp for each package, which is a set of English names: Upper Gripper D1 Smooth and Lower Gripper D1 Smooth.

The vulnerable parts of Sulzer projectile weaving machines are generally hardware components. The weft delivery assembly, weft delivery swing rod, weft delivery slider, weft delivery spring, and projectile shell are important components of projectile weft insertion. All of them have undergone scientific testing methods, and some accessories are commonly used in PU, TW11, and P7100 projectile weaving machines.

The minimum order quantity for P7100 mixed weft yarn clips (upper clip, lower clip) is 10 packages, with a delivery time of 5-10 days. If textile enterprises need to purchase products such as gripper accessories, yarn clips, upper clip, lower clip, P7100 accessories, etc., please contact Mr. Yang of our company for negotiation!
