Huixian Xinda Textile machinery accessories provides traditional textile machinery accessories - 380mm nylon shuttle. The nylon shuttle adopts elastic yarn design, which is suitable for the installation of arc type and straight neck type textile weft tube with length of 23 cm. The textile shuttle is produced and processed with PA66. The total length of elastic nylon shuttle is 38cm, the outer width of the bottom surface is 45mm, the height is 34.8mm, the appearance is smooth and wear-resistant, each box has 5 0 (single hand), suitable for manual shuttle loom.

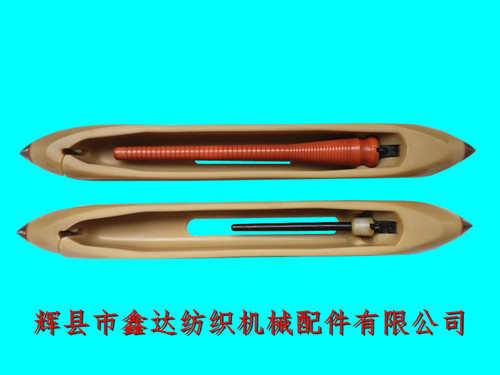

The above picture shows the front and back view of the shuttle. The bottom of the shuttle has grooves. The shuttle is composed of the body, tip, core, bottom spring, shaft, steel pin and porcelain eye. The use of 230mm long weft tube in the inner cavity can increase the yarn capacity of the shuttle itself. This can reduce the number of shuttle changes in the weaving process, improve production efficiency and output, and reduce the waste of silk return Textile enterprises reduce production costs.

Textile machinery equipment - 380 nylon shuttle is a kind of elastic yarn nylon shuttle. After putting the weft into the slot of the elastic shuttle, the left hand holds down the full winding weft of the weft tube, and the right hand pulls the weft yarn and causes it to break. At this time, the weft yarn enters the porcelain eye by means of resilience, and then it is pulled out, thus realizing the completion of threading. It is divided into left-hand shuttle and right-hand shuttle. The picture above shows right-hand r-shuttle, which is suitable for right-hand looms such as 1511, 1515 and GA615. Instructions on the backhand use of textile nylon shuttle: when using the backhand shuttle, it is necessary to pay attention to the angle between the four sides of the shuttle and the angle between the shuttle box back plate, so as to minimize the abnormal wear of the shuttle and the flying shuttle events.

Textile machinery and equipment include a variety of textile equipment products, nylon shuttle, wire heald, leather knot, textile apron, various loom reeds, angle net shuttle core, shuttle drill rod, spindle, steel ring, etc. all belong to equipment products. The single handle weight of 380 nylon shuttle is about 0.45 kg, packed in cartons, with an order quantity of more than 500 pieces. The delivery time is installation, and the order is delivered at the appointed time After the goods, welcome the textile mills, cotton weaving enterprises to contact our company for details!
