Shuttle Core (Spindle & Tongue) For Shuttles
Shuttle Core (Spindle & Tongue) For Shuttles time:2025-05-20 18:10:55 click:11745 keywords:Shuttle Tongue,Shuttle Core,Shuttle Spare Parts,Textile Hardware,Loom Shuttle Parts
description:

Huixian Xinda Textile Machinery Accessories provides Shuttle Core (Spindle & Tongue) For Shuttles, various models and specifications of shuttle core (shuttle drill) textile equipment. Shuttle Spindle,Shuttle Tongue,Shuttle Core ; The shuttle core belongs to the forging parts of textile hardware components and is a part of the weaving machine shuttle accessories. It is a shuttle textile equipment product with main specifications including: woolen shuttle core with spring plate, cracked silk shuttle tongue, wire mesh shuttle spindle with card head, slotted probing shuttle core, etc. The detailed physical pictures are shown in the following figure:

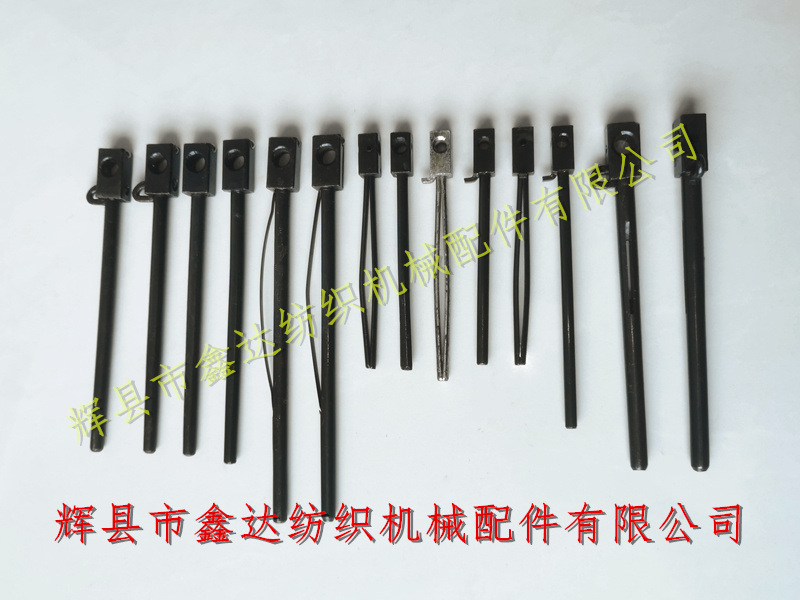

Types of textile shuttle Tongues

The above figure, from left to right, shows the slotted shuttle core (with a total length of 143 millimeters, an iron rod diameter of 8mm, a length of 120mm, a slot length * width of 25mm * 1.8mm, an inner hole diameter of 8mm, and a weight of 58 grams per piece);

Cracked shuttle Tongue with card head (long version: total length 127mm, rod length 108mm, inner hole diameter 5.3mm, weight 26g/piece) (short version: total length 101mm, rod length 81.5mm, inner hole diameter 5mm, weight 22g/piece);

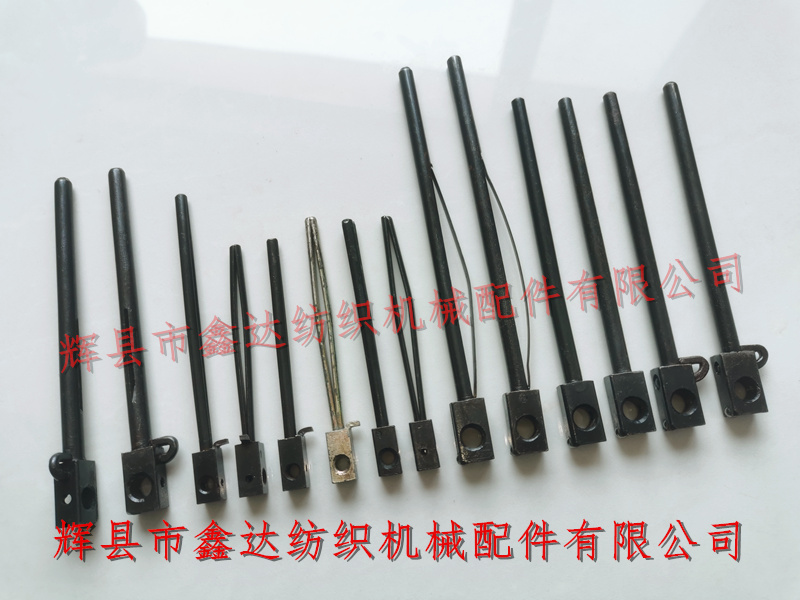

Textile machinery equipment accessories shuttle Tongue

Metallic shuttle Tongue: total length is 108mm, rod length is 89mm, inner hole diameter is 5mm, weight is 24g/piece;

No card head cracking shuttle core: The total length is 104mm, the rod length is 85.5mm, the inner hole diameter is 5mm, and the weight is 22 grams per piece;

Shuttle core with spring: The total length is 171mm, the rod length is 147.4mm, the exposed straight length of the spring is 100mm, the diameter of the shuttle shaft hole is 8mm, and the weight is 61 grams per piece;

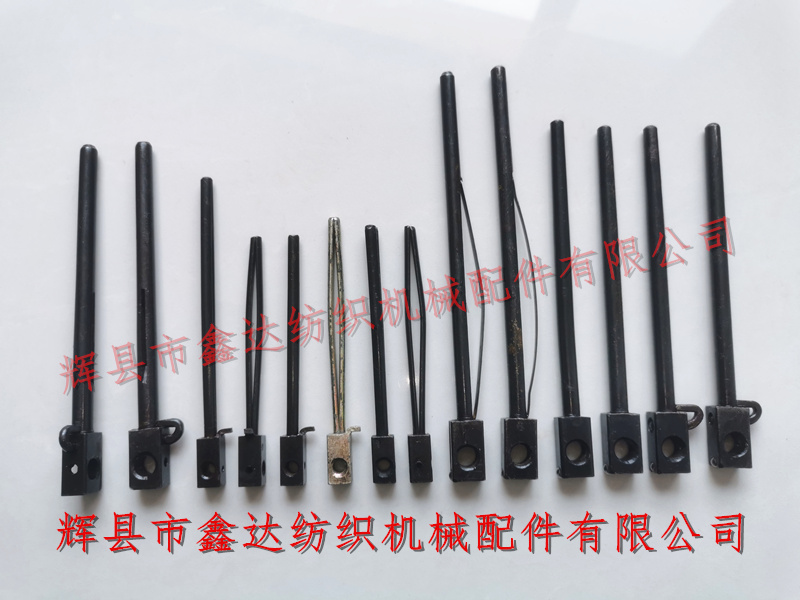

Various models and specifications of shuttle core accessories

Non card head ordinary shuttle core: The total length is 143mm, the rod length is 120mm, the inner diameter of the shuttle column hole is 8.2mm, and the weight is 51 grams per piece;

Non nylon sleeve shuttle core with card head: The total length is 142mm, the rod length is 118mm, the inner hole diameter is 8.2mm, and the weight is 52 grams per piece.

Shuttle Tongue Textile Hardware Shuttle Accessories I

In addition, there are other specifications for shuttle accessories - shuttle core. Shuttle Core (Spindle & Tongue) For Shuttles, Shuttle Spindle,Shuttle Tongue,Shuttle Core ; For more detailed parameters and shuttle Tongue model specifications, please contact Mr. Yang from our company for consultation. Shuttle core, shuttle drill, textile equipment, shuttle accessories, various types and specifications of shuttle core (shuttle drill) textile equipment for shuttles.
