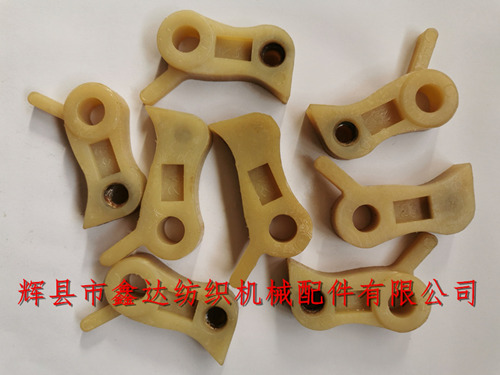

Our company provides B23 supporting head for internal let off of nylon accessories of weaving machine, full name: gear supporting head of let off saw (short, medium and long), diameter of inner hole is 10 mm, distance between center and head of b23-25 supporting head hole of nylon accessories of weaving machine is 42 mm, 45 mm and 47.5 mm respectively, three short, medium and long are put on one group of B55 supporting head bolt, and fixed on B22 supporting rod of internal let off.Nylon accessories, Nylon part of loom, Inner let off part.

As shown in the above figure: B23 and B24 short and middle supporting heads, with thickness of 11.2mm, total length of 56mm and 59.5mm respectively, are embedded with M8 nut counterweight, which is used to ensure that the supporting head naturally engages and locks with the teeth of the feed saw gear B20, so as to prevent the tooth recession during the operation of B20.

As shown in the above figure: green is long brace B25, with a thickness of 12mm and a total length of 62mm. Each loom with internal let off uses one group, i.e. one for each. The product belongs to the nylon part of the old loom. The processing and manufacturing of the brace of the 1511 narrow loom is complex, and the nylon part of the XD loom.

Packaging: transparent bag, 50 pieces / bag, nylon supporting head of textile machine, automatic internal let off loom supporting head is composed of B23, B24 and B25, referred to as b23-25 for short, this product has the advantages of noise reduction, tooth protection of serrated wheel, etc.

If you want to buy shuttle textile nylon accessories, weaving machine nylon accessories, inner warp accessories and other products in bulk, please contact our company for details. Our company has been engaged in textile accessories and textile equipment sales for 20 years. We sincerely welcome customers from all over the country to visit and guide us.
