We provide 390mm Wooden Shuttle For Silk Loom processing services and products, with a total length of 390mm, a width of 34.5mm and a height of 24.5mm. The wood shuttle is equipped with PU shuttle collet, five small porcelain eyes on the side, wrapped with red steel paper (divided into white, green and red), matched with coreless weft tube, with a single weight of about 0.2kg, which is suitable for silk loom equipment.

The length of the inner cavity of the shuttle is 255mm, the width of the inner cavity is 23.5mm, and the center of gravity of the shuttle is backward. Packing: carton, quantity: 100 pieces / box. Wooden Shuttle,Silk Loom Shuttle,390mm Shuttle,The red steel paper has good wear resistance, moisture resistance and long setting cycle after gluing and bonding. According to the characteristics of fabric raw materials, the wood shuttle accessories of K72 silk loom can reduce the shuttle height and reduce the size of shuttle mouth, which can appropriately improve the machine speed and output.

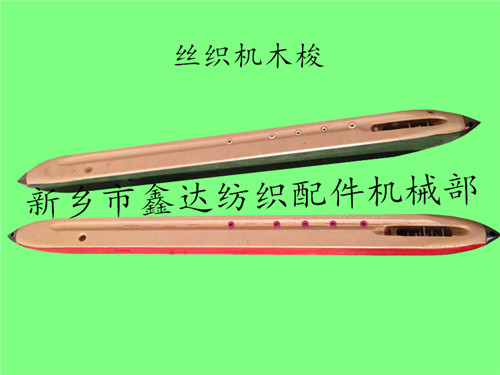

390mm silk loom wood shuttle finished product and customer sample comparison photos. During the wood shuttle processing, the inner cavity, angle and radian of the shuttle body are completely adjusted according to the sample, so the products are consistent with the sample. Due to the long processing cycle of wood shuttle, high labor cost and many manual skills, the wood shuttle does not provide test samples.
