Huixian Xinda Textile Machinery Fittings Co., Ltd. specializes in providing 1511 old-fashioned woven machine accessories,treading rod， heald bar A00-1/2 (long Treadle and short Treadle). The length of 1511 heald bar is used together. Each woven machine is installed with one long and one short. The total length of A00-2 long heald bar is 53.6cm, and the total length of A00-1 short heald bar is 51.8cm. They are composed of heald bar casting body and two 3122 bushings.

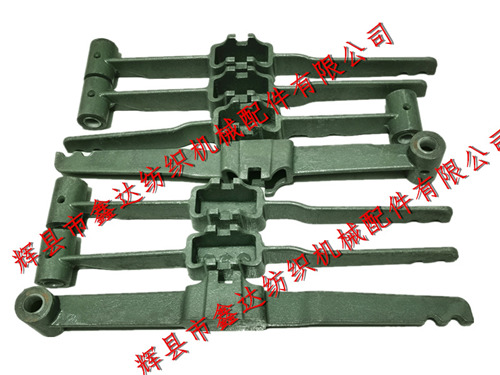

The lower three in the figure above are long heald rods A00-2, and the upper two are short heald rods A00-1. The bending is just the opposite. The oil holes are between the two bushings. They are the heald parts of textile shuttle weaving machine accessories, which are used to assist the up and down movement of fabric Brown frame to form shed. The left and right lateral movement of the heald bar A00-1 and A00-2 on the heald bar bolt A8 shall not exceed 0.8mm. If it is too large, it can be padded on the heald bar bolt with special washers.
The A00-2/1 heald bar of textile iron castings can only be used on single beam 1511 shuttle weaving machine equipment. The heald bars used in 1515 and GA615 are regardless of length, and the heald bars used in twill devices are generally bent upward from the front. The packing of heald bar is simple. There are 5 pieces in each bundle, and the weight of a single heald bar is 2.3kg. The weight difference between the length and length is small, which can be ignored.
The 44 inch and 56 inch shuttle weaving machines with single beam can weave a variety of fabrics. The heald bar is mainly used for the processing of all kinds of flat textiles. The multi arm multi shuttle weaving machine generally uses the heald spring (pigtail bar spring) under the brown frame. The shaft hole of the heald rod is 20mm, the length of the shaft hole is 68.5mm, the inner length of the middle groove is 79mm, the inner width is 35mm, the width of the fixed clamping groove of the rotor shaft is 18mm, and the two grooves in the front are connected with the lower heald hook of M41.
Our company is a professional supplier of woven machine accessories, 1511 heald rods and 44 heald rods for old machines. Heald rods with special specifications and lengths can be customized according to customer requirements. Textile manufacturers at all levels are welcome to contact our company for business negotiation.
