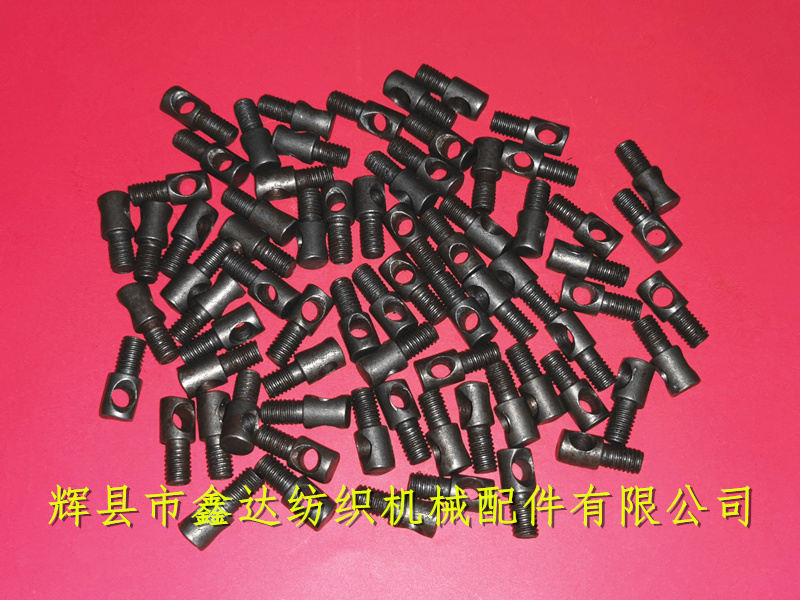

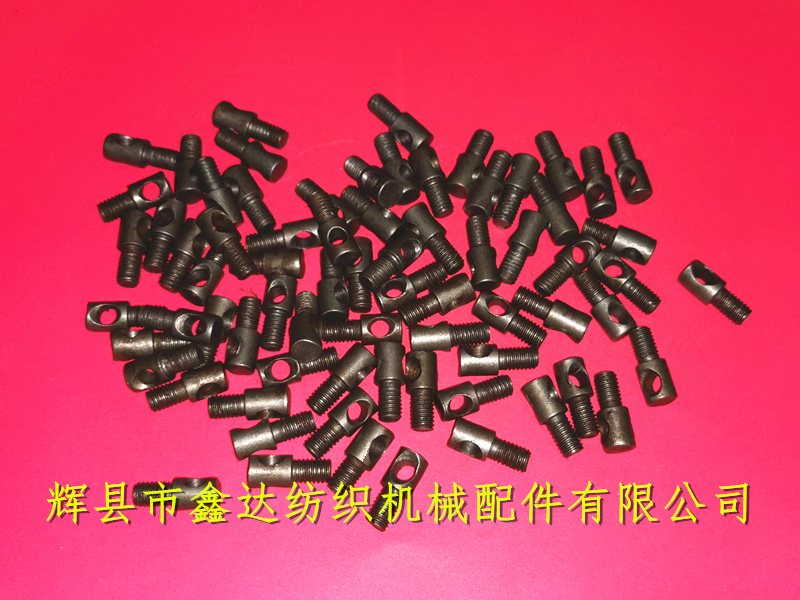

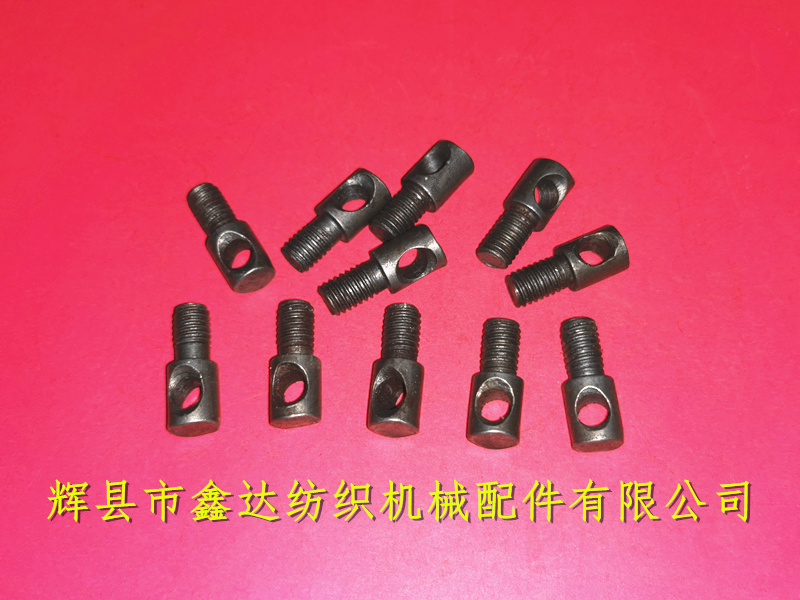

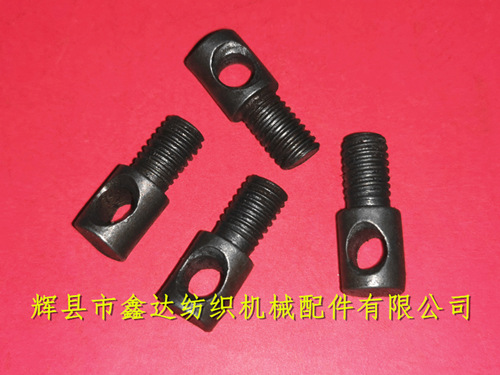

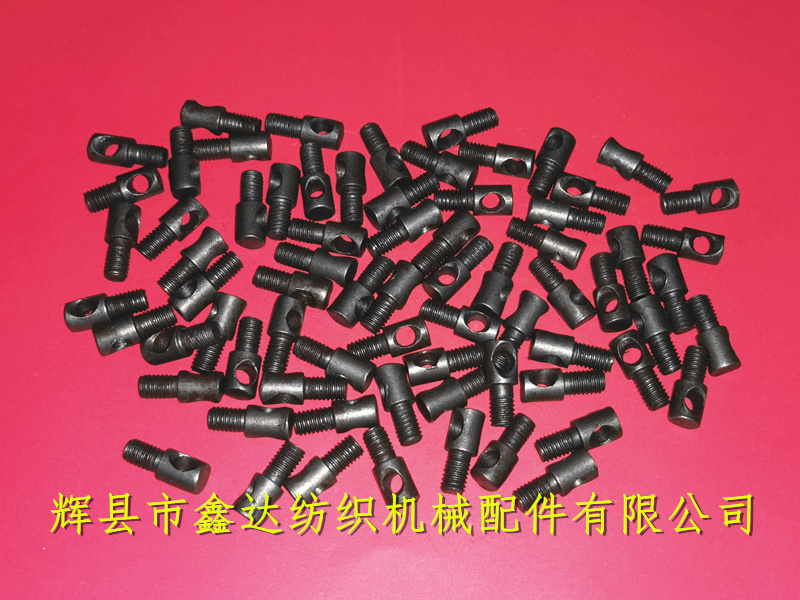

Our company provides 1515/1511 loom parts general-purpose K208 control screws. The material of K208 control screws of loom shuttle box accessories is steel 20, with a total length of 19.5mm. The front is M6 screw (length is 9mm), the rear diameter is 8mm, the length is 10mm, and the inner diameter of round hole is 4.7MM. The control screw k208 is connected with the tongue Q7 of the raised back plate, and each loom uses 2.
The nut used in the front screw of the loom general fitting K208 is bm6. The common shuttle changing and rolling is the fault caused by the full shuttle can not be changed into the shuttle box, the position is not correct when changing into the shuttle box, or the empty shuttle can not be smoothly removed from the shuttle box due to various reasons during the shuttle changing process. It is called the shuttle changing and rolling fault. It may damage the shuttle at least, or crush the machine parts and produce secondary cloth, resulting in long-term shutdown for repair.
K208 Royal screw is similar to O23 connecting rod connecting bolt in shape, and its head is slightly smaller than O23 1515/1511 loom accessories. The packaging of general-purpose k208 Royal screw is self sealing bag, 200 per bag, with a minimum order of 10, and the delivery time of about 4-7 days.
The maintenance of the loom focuses on prevention and control. The shuttle changing movement is an impact movement. Therefore, its components are easy to be damaged and moved. In order to ensure the normal functions of the loom, one side must be comprehensively repaired at regular intervals. This cycle is determined according to the specific conditions of loom speed, weft capacity, machine material quality, etc. It is usually one month, but the general requirement should be to ensure that the function of the shuttle changing mechanism can be maintained well between the two cycles.
Our company provides 1515 loom accessories, 56 inch Royal screws, Loom Parts,1511 Parts,Control Screw,1515 Parts,1511 accessories and other products. For more detailed parameters of 1515 shuttle loom parts and 75 inch loom screws, please contact Mr. Yang of our company for consultation!
