Xinda Textile Fittings specializes in supplying arc shuttle teeth and rack fittings of various looms.Ribbon loom,The teeth of the rack are arranged in an orderly manner. The special fittings of the cap belt machine are made of steel 20 and are processed by wire cutting. The length of the shuttle is 70-90 cm.The shuttle moves regularly on the two adjacent shuttles by the rack dragging. The order is 5. The shuttle teeth of the wooden shuttle belt are made of phenolic cloth. Plate pressing,arc processing, the number of teeth is generally 10 teeth,8 teeth,12 teeth,14 teeth.

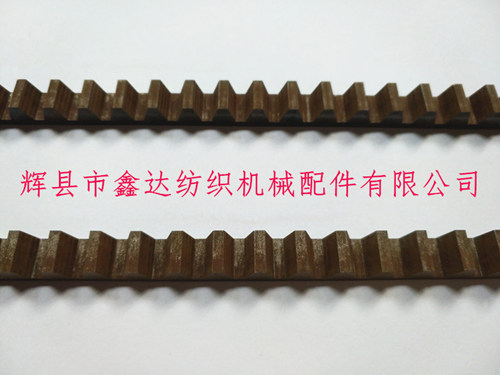

The rack of shuttle loom has the same tooth spacing, the tooth spacing is 9mm, and it is connected with shuttle seat gear (red steel paper). The rack width is 9.4mm and the thickness is 8mm.Shuttle teeth,Ribbon loom, loom accessories.

On the back of rack, rack of 6 shuttle arc loom, special processing of textile hardware, detailed dimensions, rack parameters, process requirements, modulus and operation principle, please call us.Arc Shuttle Teeth And Rack Fittings Of Ribbon Loom.

One rack, six shuttles and seven shuttle seats are one car (group 1 for short). The whole group orders more than two sets and the delivery time is about 23 days. The rack for arc shuttle of cap belt machine and rack for special textile machine are produced by Huixian Xinda Textile Machinery Parts Co., Ltd.
