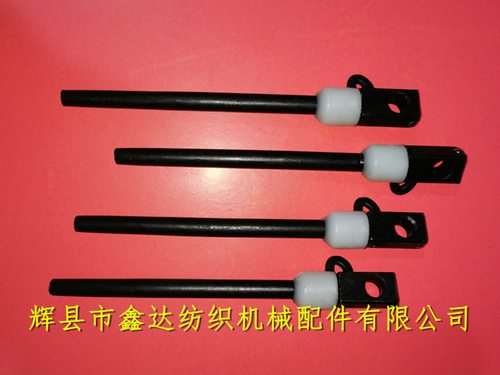

Huixian Xinda Textile Accessories Co., Ltd. provides textile accessories, shuttle core looms,Textile Shuttle Tongue Loom Equipment, wood shuttles and nylon shuttles. The angle mesh shuttle core (with nylon sleeve) is a universal accessory of the loom shuttle. Whether cotton woven wood shuttles, nylon shuttles, or composite shuttles are the same, the shuttle core parameters: the total length is 139mm, the length of the rectangular head is 22.5mm, the width is 10mm, and the height is 13mm. The inner diameter of the middle shuttle column hole is 8.2mm, and the inner diameter of the oil injection hole is 3.4mm, The diameter of steel ball is 4.6mm; The outer diameter of the white nylon sleeve is 15mm, the protruding height of the bending clip is 8mm, and the diameter of the black iron rod in the front of the shuttle core is 6.5mm, which is in a slope shape.
The nylon sleeve of the Shuttle Tongue is used to tighten the inner cavity of the weft bobbin, and the clamping head fixes the (notch) clamping groove of the weft bobbin to prevent the weft bobbin from rotating during use. The nylon bobbin core is used to replace the rectangular material with an injection molded part. Textile accessories Shuttle core loom Wood shuttle nylon shuttle universal parts are made by forging process, which can meet the use of shuttles with width of 45mm, height of 35mm and different lengths.
According to the different uses of the shuttle, the size of the shuttle core also varies, as shown in the figure above, from top to bottom: the shuttle core used by the gripper wool spinning shuttle is with a spring plate, the middle is a cotton loom wooden shuttle, the shuttle core is an ordinary shuttle core, which is a common part of commonly used cotton looms (plain cloth, small canvas, etc.), and the lower part is also a gripper shuttle, but the shuttle core used is generally called the shuttle drill rod, which is relatively longer.
The package of shuttle tongue is woven bag, 500 pieces per bag, and the weight of a single shuttle core is about 0.062kg. Textile Shuttle Tongue Loom Equipment, If you need to purchase shuttle tongue, shuttle accessories, textile equipment, textile accessories, nylon shuttle core and other products, please contact Mr. Yang of Xinda Textile Accessories!
