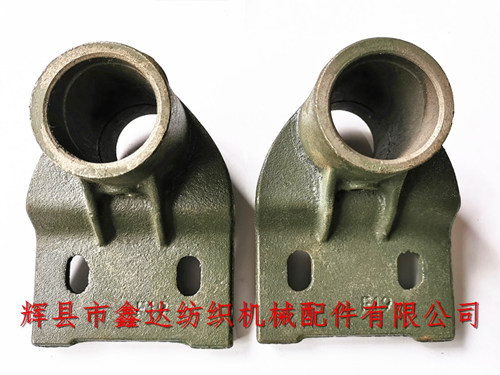

Huixian Xinda Textile Machinery Accessories Co., Ltd. provides textile machinery parts, F19 loom Bracket For Rocking Shaft, which is fixed on the loom rocker with diameter of 38mm together with F21 rocker sleeve. The inner hole diameter of loom F19 is 48mm, which is the same as the outer diameter of textile rocker sleeve F21. F19 Bracket For Rocking Shaft Loom Parts,The overall length of textile rocker hanger foot is 152mm, the width is 113 mm, the barrel height is 95mm, and the weight of single textile part is 1.95 kg.

The two fixing holes of the loom rocker hanging feet are installed with the carriage wire (half round head square neck bolt) of M12 * 45. The hanging foot plane of F19 is attached to the loom wall panels P1, P2 (1511), 4301, 4302 (1515) and installed upside down. The front and rear installation positions of F19 are determined by using a 501 mm rocker gauge on the outside of the wall panels on both sides.

The material of F19 is HT gray iron, and there is oil groove in the inner hole of gun barrel to ensure that the sleeve can contain oil when it rotates left and right inside the hanging foot, so as to reduce the wear of textile machinery parts. During weaving, it is necessary to regularly check whether the oil hole is blocked by wool.

If you want to purchase shuttle textile machinery parts, loom F19 hanging feet, Rocking Shaft, Bracket For Rocking Shaft,Rocking Shaft Loom Parts,shuttle loom rocker support feet and other products, you can contact our company for negotiation. We provide 1515 domestic textile parts sales, 1511 old shuttle loom parts processing and other services.
