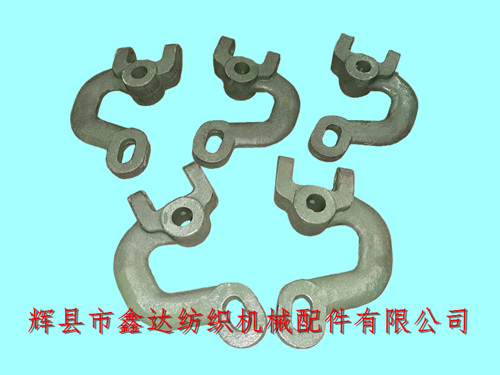

![F220 Switch Handle Seat 1511 Weaving Parts](/eng/Uploads/6678d3b22eea3.jpg)
Huixian Xinda Textile Machinery Accessories Co., Ltd. provides F220 switch handle holder 1511 weaving machine accessories (borrowed from 1515). The F220 switch handle holder is a fixed support foot for switch handle I10, made of gray iron HT15-32. Each weaving machine uses one switch handle holder, which is not divided into left and right hands and can be used for various widths of weaving machines in 1511, 1515, and GA615.
F220 is an improved component, with the predecessor being I29. The diameter of the circular hole in the middle is 14mm, which is fixed on the I2 switch base after connecting to I28 and connected by the F233 core shaft. The outer length of F220 is 135mm, the U-shaped groove for fixing the handle has an outer width of 56mm and an inner length of 34mm.
The tail of the switch handle seat is connected to the F230 switch arm connection block; The two circular holes that fix the position of the handle have a diameter of 10mm and are connected by the I33 pin. They both belong to the switch components of the weaving machine. 44 inch handle holder, 56 inch weaving machine accessories, 1511 switch holder, 1515 handle holder, 75 domestic weaving machine accessories and other products are part of the shuttle textile machine accessories.
The packaging form of the product is 10 pieces per string, with a minimum order quantity of 10 pieces; If local weaving factories need to purchase F220 handle holders, GA615 weaving machine accessories, 1511 switches, and 1515 handle holders, please contact Mr. Yang from our company for consultation.
