Huixian Xinda Textile Machinery Accessories Co., Ltd. provides Pinion Hanging Feet L30 Electric Loom Parts, bracket accessories for L30 electric loom with small gear hanging feet. The diameter of the inner hole above L30 is 45mm and the diameter of the inner hole below L30 is 28mm. A core pinion is installed together with the core foot of L31 conversion gear, and connected with L8 sector foot and L10 bridge gear. The accessories are suitable for 1511, 1515, GA615 and other loom models, It is the key component of the take-up device of electric loom.

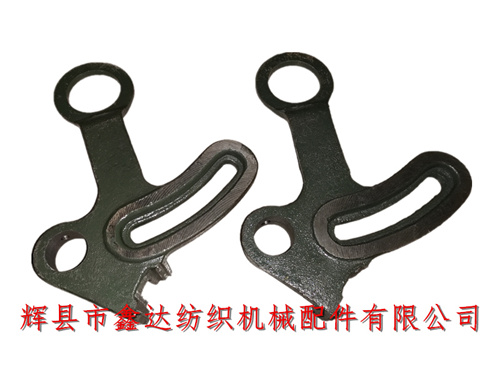

The above figure shows the left hand of the pinion hanging foot L30. Contrary to this photo of the loom sketch, the weight of a single supporting foot is about 0.9 kg. During installation, it should be noted that the clearance between it and the cored pinion (L00-4) should not exceed 0.6mm. One set is used for each loom.

The figure above shows the right hand and left hand of the L30 pinion hanging foot. Generally, there are three kinds of failure of the coiling device. The dynamic range of the coiling hook L5 becomes smaller, and the hook L7 is disengaged in the middle of L5. Although the gear train moves forward, it still cannot draw the cloth into the cloth coiling roller.

The above figure shows L30 and L31 components. When installing this hanging foot combination on the loom, it is necessary to check whether the installation of the cored pinion is qualified and whether the fit between each gear and the mandrel is correct. Our company provides all kinds of shuttle electric loom hanging feet, loom accessories, gear hanging feet, 1515 coiling hanging feet, GA615 core supporting feet and other accessories all year round.
