Huixian Xinda Textile Machinery Accessories Co., Ltd. has been supplying all year round the support rod foot accessories of L14 loom roll. It is divided into left-hand car and right-hand car, which are installed on the shuttle side of the loom. On the opposite side (switch side), L15 roll support rod foot is used, which has a fixed hole more than L14. Their materials are HT gray iron, which are respectively fixed on the wall panels on both sides of the loom.

Each loom uses one piece of L14 and one piece of L15 for its roller. The roller support bar refers to 1515w 5102 (GA615 loom, 330mm in length) and 1515 l16w (300mm in length), which are used to fix and support the stable rotation of the roller.L14 Loom Roll Support Bar Foot Accessories.

Installation requirements: the distance between the lower part and the upper plane of front crossbeam 4307 or P4 is (134 + 0.5) mm, and the height of both sides should be the same. During installation, it is necessary to use the regular alignment roller to support the driving feet.

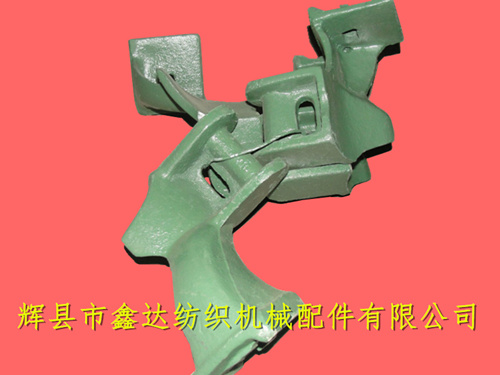

The photo above shows the physical photo of L00-3 quill foot hanging. It is adjacent to the loom roll and installed on the shuttle changing side of 44 inch, 56 inch and 75 inch looms. The part number of the inner sleeve is A30 and the inner diameter is 22mm. The outer diameter is 28mm, i.e. the thickness of inner sleeve wall is 3mm.
