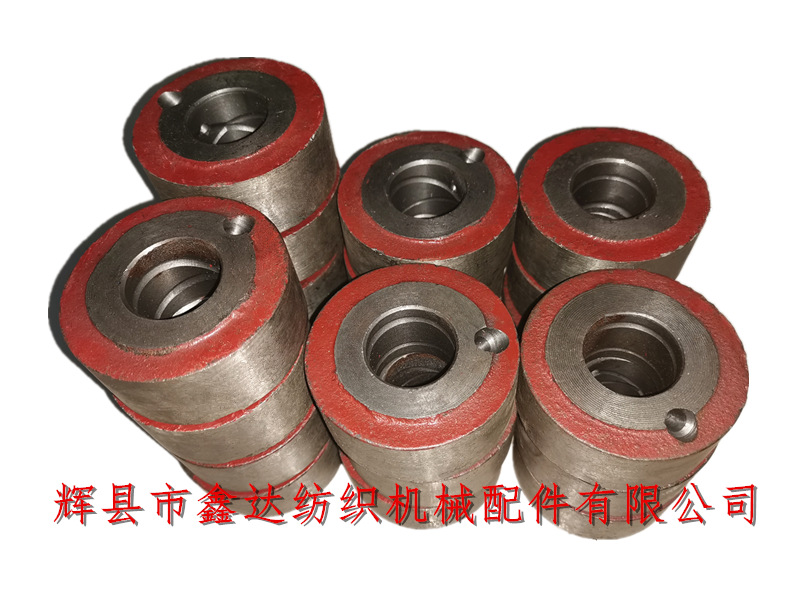

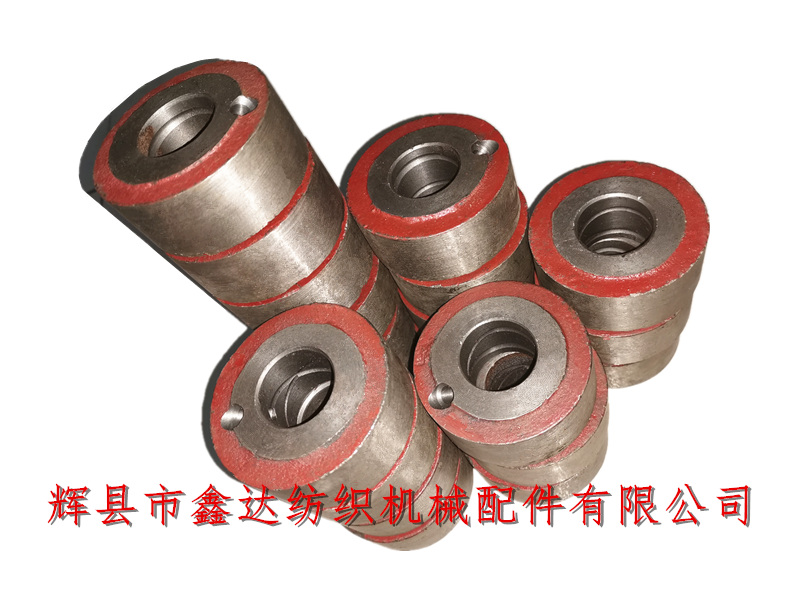

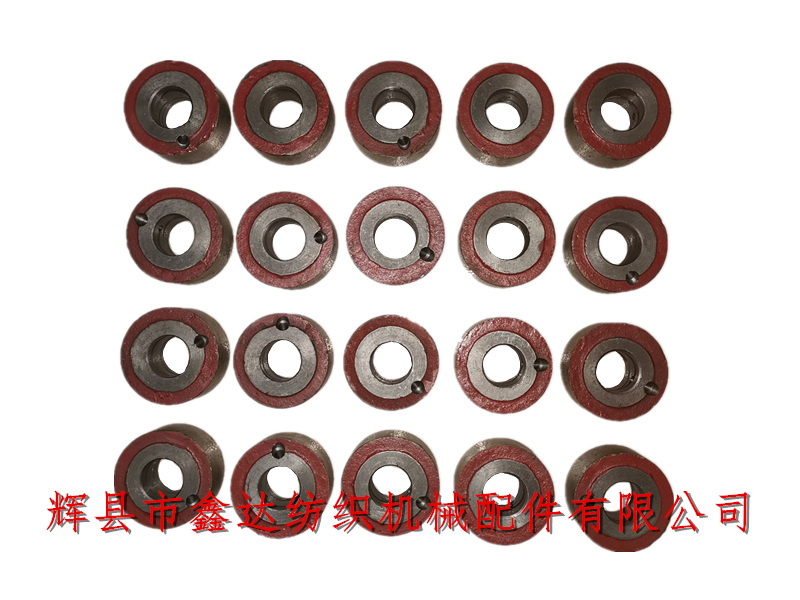

Xinda Textile Machinery Accessories Co., Ltd. provides picking bowl parts (general parts of loom) of shuttle machine F11 of models 1511, 1515 and GA611 all year round. Shuttle loom Picking Bowl F11 Ductile Iron is fixed on shuttle disc F8 and is an important part of shuttle mechanism. The shape parameters and dimensions of rotor parts of shuttle machine F11 are: outer diameter 77mm, inner hole diameter 32mm, thickness 33.5mm and inclined oil hole diameter 7mm.

Iron castings and ductile iron parts of textile machinery are generally distinguished according to the color of painting. Red is ductile iron and green is pig iron.Picking Bowl,Shuttle Loom Parts,Loom Parts, There are two oil trunks in the inner hole of F11 shuttle rotor, which is convenient to add oil during daily maintenance. The peripheral polished surface is in contact with the upper sharp arc surface of the shuttle nose, and the cold hardening process is adopted to enhance its wear resistance and strength.

The number of loom accessories F11 used on the loom is 2pcs. One is installed under the outer side of the two wall panels of the loom. When driven by the rotor disk to rotate, it impacts the shuttle nose F4, resulting in shuttle throwing power. The number of F11 shuttle throwing rotors in each string is 10, and the weight of a single rotor accessory is 0.8kg.

The general parts of loom refer to the parts of this shuttle loom, which are applicable to all kinds of shuttle loom equipment (1511, GA611, 1515, GA615, etc.), and can be borrowed from each other on shuttle looms with different door widths, so it is also called borrowing parts. Shuttle loom Picking Bowl F11 Ductile Iron, If textile enterprises and manufacturers need to purchase shuttle weaving machine parts, please contact manager Yang of our company for details.
