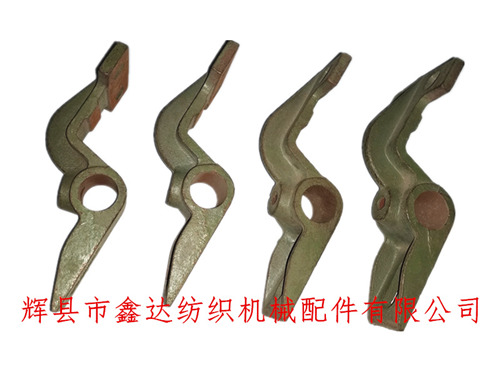

Huixian Xinda Textile Accessories Co., Ltd. has long provided 1511 type textile accessories - K24 reed clamp shaft side support foot (3113), made of HT15-33 pig iron, with a total length of 167mm and inner hole diameter of 24mm (the same thickness as the reed clamp shaft). Each loom uses 2 pieces, which are respectively installed on two sides of the reed clamp shaft, and the middle support foot uses K25 without tail.

For old-fashioned weaving machine K24, the back of the reed clamp shaft support foot of shuttle weaving machine K24 is fixed by M8 top wire, the key slot with top wire is used for 1515 type, and the cracked design is used for GA615 type weaving machine, and the reed clamp shaft is clamped by screws.

The two fixing holes above are connected with the reed clamp wood Q11, and the reed clamp wood strip is fixed with the reed clamp wood gasket k206 (with silk pattern).

Textile accessories - reed clamp shaft support foot weighs about 0.9kg, with screw chute at tail, which is convenient to adjust K27 striker.

Detailed price of weaving machine K24, parameters of reed clamp shaft, wholesale market of reed clamp shaft support foot manufacturer - Huixian Xinda Textile Machinery Accessories Co., Ltd. Our company sells auxiliary accessories of reed clamp shaft, such as K24, K25, and 3113 (connected with 3107).
