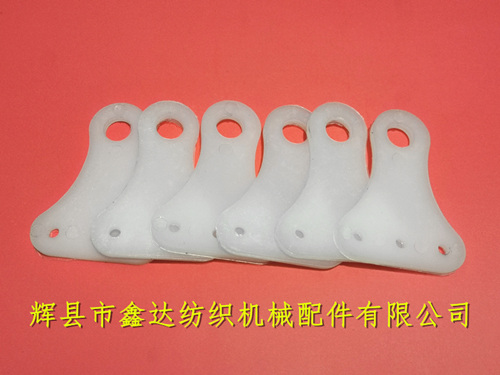

Huixian Xinda Textile Machinery Accessories Co., Ltd. provides textile plastic accessories, Textile Nylon Parts, external let off accessories, tension spring SJ-02, which is made of industrial polypropylene. The overall length of the tension spring is 74.5mm, the width is 56mm, and the thickness is 4.2mm. Three circular holes with a diameter of 5mm are arranged in a straight line, with a spacing of 18.5mm; The diameter of the large hole at the other end of the textile plastic fitting SJ-02 is 12.6 mm, and the center distance between this hole and the three small holes is 50 mm. Each loom uses 2.

SJ series of out of machine let off device accessories are often used in 1515 and GA615 double beam looms. At the same time, they are also matched with GA74 series rapier looms. Some 1511 single beam looms can also be used after modification. According to shuttle looms, they can be divided into left-hand devices and right-hand devices, while rapier looms only use one type because they do not have left and right hands.

External let off accessories SJ-01 tension spring screw, SJ-02 tension spring, SJ-03 tension spring sleeve and SJ-07 tension frame are auxiliary accessories of tension spring; The outer width of the large hole of textile nylon accessories and loom plastic accessories SJ-02 is 27mm, and the width of both sides of the arc injection hole is 24mm.

Nylon accessories SJ-02 of textile machine are packed in plastic self sealing bags, with a minimum order of 20, regardless of left hand and right hand;Tension spring,SJ-02,Textile Nylon Part,Textile Accessories,  If local textile mills and cotton mills need to purchase SJ-02 tension spring, please contact Mr. Yang of Xinda Textile machinery accessories company for consultation, and you can also obtain other details of the spring.
