Huixian Xinda Textile Machinery Accessories Co., Ltd. provides F00-6 brake steel belt combination,Brake Bande, Shuttle Loom Parts, F00-6 Brake Steel Belt Of Loom Brake Bande ,including shuttle loom accessories. 1515 loom steel belt, 1511 brake belt and GA615 brake belt are the components for braking (parking) of various shuttle looms. They are composed of asbestos copper wire brake belt F226, steel belt F225, steel belt joint F224, steel belt connecting plate F227 and screw F228. Each shuttle loom uses one set.
The steel belt and brake belt of F00-6 loom are connected with F219 (steel belt and brake arm mandrel) and fixed on 4104 or F217 brake rod, and the screw F228 at the other end is fixed on 4106 steel belt screw seat. F00-6 Brake Steel Belt Assembly Brake Bande, The total length of the steel strip is 96.5cm and the width is 32mm; The length of asbestos copper wire brake band F226 is 55.5cm, the inner diameter of tail hole is 20.4mm, the length of front screw is 12.7cm, and the length of M12 thread is 8.8cm.

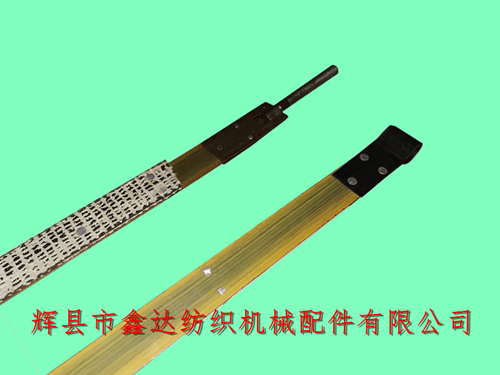

The full view of the brake steel belt F00-6 (see the above figure), the asbestos copper wire friction brake belt is riveted on the steel belt as a whole. The brake belt F00-6 is applicable to shuttle looms with different door widths (42 inches, 44 inches, 52 inches, 54 inches, 56 inches, 63 inches, 72 inches, 75 inches, 100 inches, 110 inches, etc.).
Textile machine steel belt F00-6 is unpackaged, with 10 pieces in each bundle. The weight of a single steel belt is about 0.45kg. The thickness of the steel belt is 1mm, the thickness of asbestos belt is 4.5mm, and the overall thickness is 5.5mm. The whole steel belt is riveted by 17 rivets and composed of two kinds of rivets (aluminum rivets and iron rivets).
If local textile manufacturers and processing enterprises need to purchase textile steel belt, F00-6 Brake Bande,Brake Steel Belt,Shuttle Loom Parts, 1515 loom steel belt, GA615 brake belt and 1511 loom accessories, please contact Mr. Yang of Xinda Textile machinery accessories company for details!
