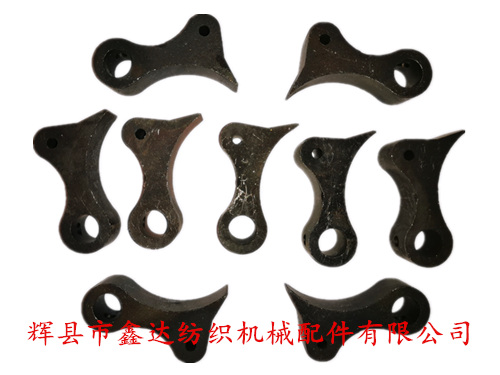

Our company provides 5143 accessories for rapier loom iron brace head. rapier loom parts,taking-up click,rapier parts,The color of iron brace head is black. This accessory is used in the process of cloth rolling to prevent the reverse teeth of cloth roller. The helical gear of manual loom is fixed on the frame by means of ratchet wheel of twister, change gear of spinning frame or weft dense wheel of rapier machine. The iron support head of loom can block the teeth of helical gear by gravity. This design method is generally adopted in square tube looms for home hand weaving.

The size of taking-up click used in hand loom: inner hole diameter 12mm, hole diameter 4.5mm, total length 6cm, thickness 18.7mm, single weight: 0.1kg.Rapier Loom Parts Taking-up Click 5143.

5143 can also be used for other GA747 looms with the same principle. Part No. 5143 is an improved version of 5109, with 10 pieces per string and more than 50 pieces per string. The default payment will be delivered according to the agreed time.

The installation diagram of the taking-up click on the home hand loom is shown as above. The inclination angle makes the center of gravity of the iron brace head to the right, so the teeth will be stuck when the ratchet wheel rotates clockwise, so as not to retreat. Generally, one is used for each manual loom.

If you need to buy manual loom accessories, 5143 iron brace head, Masteel brace head, Rapier Loom Parts Taking-up Click 5143,manual loom brace head accessories 5143 and other products, welcome to consult our company!
