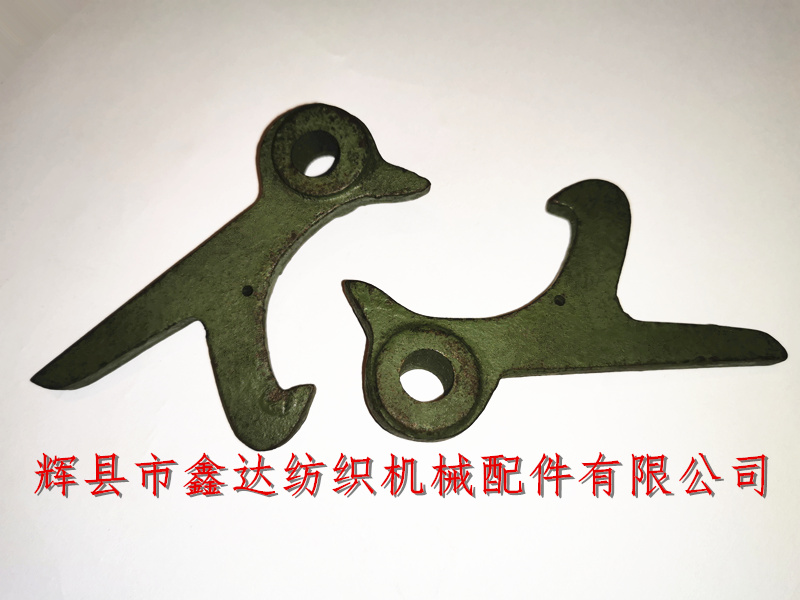

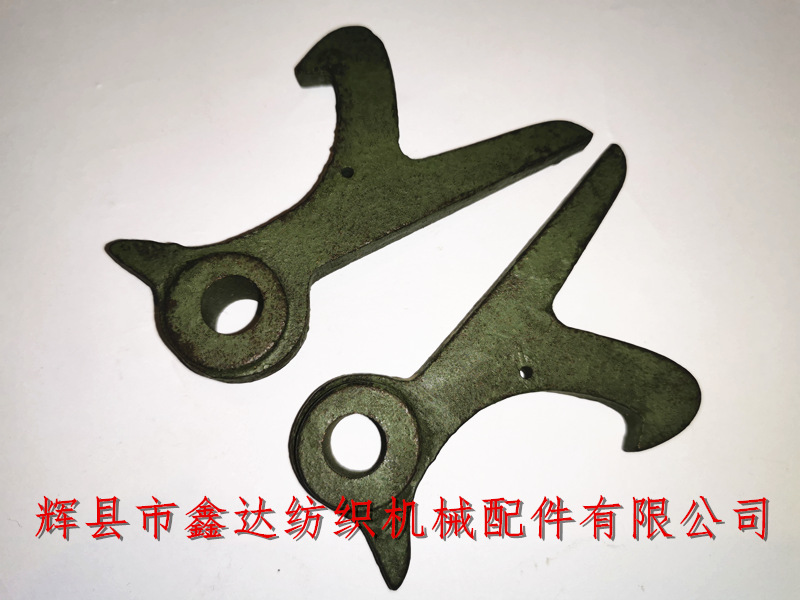

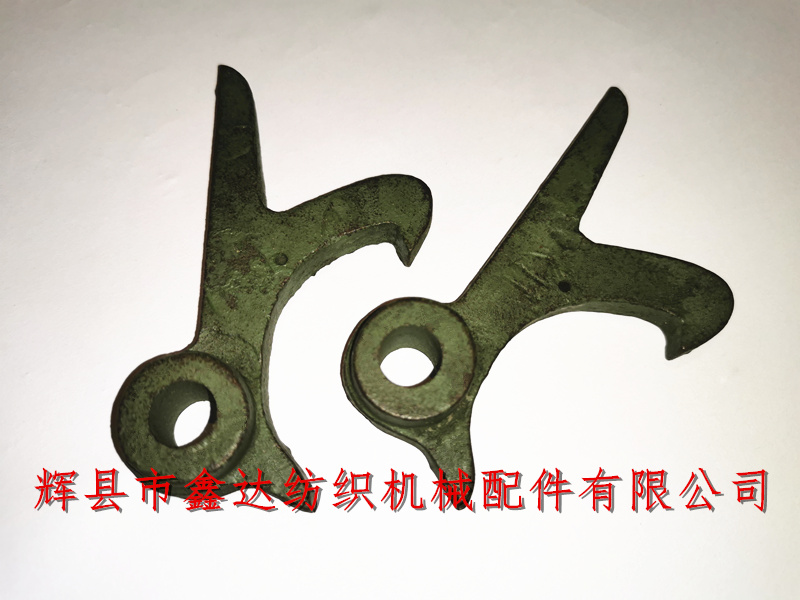

Huixian Xinda Textile machinery accessories provides K11 loom bending slide rotor hook all the year round. It is connected with K10 bending slide rotor rod. The parameters of rotor hook K11 are: length is 85mm, shaft hole diameter is 10mm and thickness is 14.5mm. The material is gray iron HT15-33. The product is divided into left hand and right hand, with a single weight of about 0.05 kg.

The hook for the rotor rod of the bending sliding plate of K11 loom is about 3mm away from the reed seat cushion iron K83, and the allowable difference is ± 0.8mm. The 2mm diameter hole on the product surface of the rotor hook is used to install the spring K9 (inner diameter 25mm, spring wire diameter 1.5mm).

The rear end of the rotor rod K10 of the weaving machine is 4mm above and below the reed foot (based on the installation of the reed), and the outer side of the rotor rod K10 is roughly flush with the outside of the reed foot.

The hook for rotor rod of K11 loom bending sliding plate belongs to warp protection device accessories, which are installed on the reed clamp shaft of the loom. The hook rod, rotor rod and other accessories of weaving machinery are mainly used for stopping and retreating during the rotation of the loom. For detailed K11, bending sliding plate, rotor hook parameters, dimensions and other information, please contact Mr. Yang of our company.
