19T Weft Density Gear For Shuttle Loom
19T Weft Density Gear For Shuttle Loom time:2022-07-08 09:33:19 click:8386 keywords:Weft Density Gear,Shuttle Loom Parts,Textile Machine Parts
description:

Huixian Xinda Textile Machinery Accessories Co., Ltd. specializes in providing weft density change gear accessories, 19T Weft Density Gear For Shuttle Loom . L33 part number is the general name of weft density gear of shuttle loom. Weft Density Gear,Shuttle Loom Parts,Textile Machine Parts, The 19 tooth change gear is represented by L33-19T. The inner hole diameter of the gear is 18mm (all metric looms have the same size), the gear thickness is 21.5mm and the outer diameter is 37.3mm. Because the change gear is made of sand casting teeth, its modulus is about 1.8, Generally, flat looms use two straight tooth transformation gears.

Textile machinery accessories 19 tooth weft dense wheel

One side of the weft density wheel of the loom is provided with a clamping groove, which is fixed in contact with the l00-4 cored pinion or L00-6 change gear core. As for towel loom, due to the addition of fuzzing device and the need for supporting change gear to control weft density, three change gears (weft density wheel and loom gear) are commonly used.

Weft density wheel of 1515 loom

The weft density wheel of the loom is an accessory that needs to be changed according to the change of the warp and weft structure of the fabric. It is calculated according to the calculation formula of the weft density wheel, and then the gear corresponding to the tooth is selected for the test machine. Because the weft shrinkage rate of different fabric varieties is different, the actual machine shall prevail.

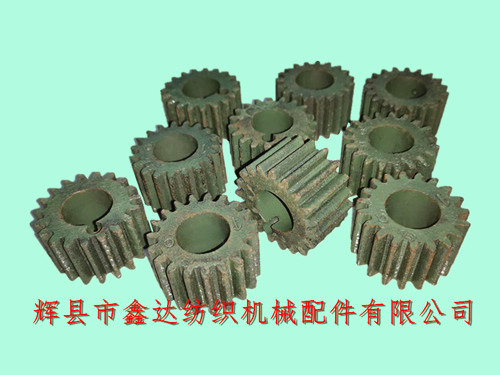

19 tooth weft dense wheel textile machine gear

19T change gear belongs to the straight gear accessories of loom, with 20 pieces in each string, and the weight of a single 19 tooth wheel is about 0.1kg, without packaging; The range of the two dual gears is affected by the adjustable range of the L30 * 31 change gear foot, and the positions of L6 gun barrel and l00-6 change wheel core are fixed.

Loom weft density wheel textile machine change gear

The above figure shows several commonly used weft density wheels. From left to right, they are 50 teeth, 48T teeth, 44 teeth, 43 teeth, 35 teeth, 36 teeth, 37 teeth, 38 teeth, 39 teeth, 33 teeth, 32 teeth, 31 teeth, 29 teeth, 25 teeth, 23 teeth and 19 teeth respectively. Purchase textile weft density wheel,Weft Density Gear,Shuttle Loom Parts,Textile Machine Parts,  loom weft density gear, textile machine change gear and old loom accessories. Please contact Mr. Yang of our company for negotiation. New and old customers from all walks of life are welcome to place orders.
