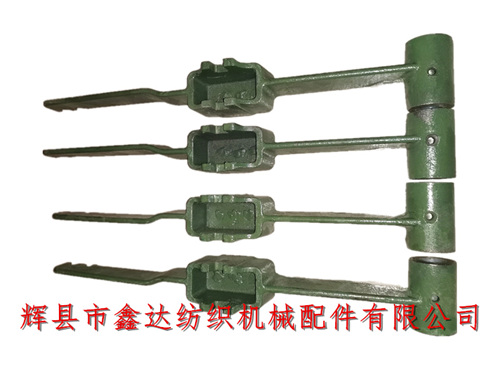

THuixian Xinda Textile Machinery Accessories Co., Ltd. provides 1511 small loom parts - Treading Rod A00-1 / 2 all year round. The heald bar of loom can be divided into long and short,The total length of A00-1 is 51.8cm, and the total length of A00-2 is 53.6cm. They are composed of A2, A3 and 1515-3122 bushings. Each loom uses one set. The weight of a single heald rod is about 2.3kg. The material is gray pig iron. The middle groove is equipped with A6 rotor shaft and A5 (A00-3) rotor.

The shaft hole of the Treading Rod is 20mm, the length of the shaft hole is 68.5mm, the inner length of the middle groove is 79mm, the inner width is 35mm, and the width of the fixed clamping groove of the rotor shaft is 18mm. The above figure is the assembly photo after installing the rotor shaft and heald rod rotor.

Textile accessories, small loom accessories, old shuttle loom accessories - A00-1 and A00-2. There are grooves in the front of the heald bar. According to the lower heald hook M41, the two grooves are mainly used to adjust the front and rear sequence and spacing of the heald frame. Long step heald rod A00-2 hoists the front heald frame, and short step heald rod A00-1 hoists the rear heald frame. The difference between the front and rear square grooves of each step heald rod on the same loom is ≤ 0.4mm, and the difference between the height of the square groove is ≤ 0.2mm.

In the above figure, A00-1, A00-2 and 1515-3100-6 are used for plain loom from top to bottom. The front bending direction of the heald bar used in 1511 is different, and the straight heald bar used in 1515.

There are 5 heald rods in each string, and the order quantity is 5. The 1511 type is connected with the A8 heald rod bolt and fixed on the A1 hanging foot. Our company provides shuttle textile iron castings, pig iron accessories of loom and heald parts of electric loom.
