120mm Stopping Plate (Warp Steel Droppers)
120mm Stopping Plate (Warp Steel Droppers) time:2024-08-26 07:54:21 click:10378 keywords:Steel Droppers,Stopping Plate,Loom Droppers
description:

Huixian Xinda Textile Machinery Parts Co., Ltd. provides 120mm warp stopping plate (Stainless Steel,Warp Steel Droppers) old-fashioned weaving machine accessories. The total length of this warp stopping plate (Warp Steel Droppers) is 120mm, the width is 11mm, the thickness is 0.2mm or 0.3mm, and the material is stainless steel. Under normal circumstances, 1511 and 1515 weaving machines use a thickness of 0.2mm. The diameter of the circular hole in the middle of the warp stopping piece is 5.5mm, used for threading warp yarns. The length and width of the upper groove are 53mm and 4mm respectively, used for threading the warp stopping strip (iron rod of the warp Steel Droppers) O33 or 3604 of the weaving machine.

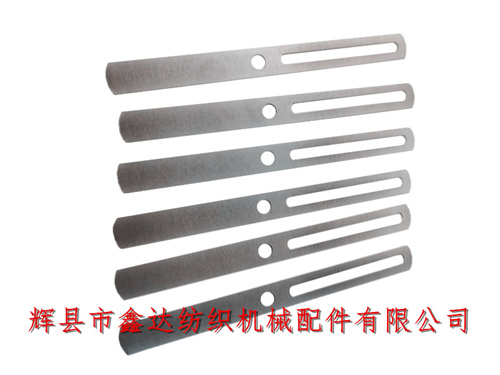

Stainless Warp Steel Droppers 120mm equipment

The length of the 1511-O33 Warp Steel Droppers iron rod is 42 inches to 1116mm; 44 inches -1167mm, 46 inches -1218mm, 50 inches -1319mm, 52 inches -1370mm.

Stainless steel Warp Droppers 0.2mm

The length of the 1515-3604 stop bar: 56 inches -1474mm, 59 inches -1548mm, 63 inches -1649mm, 67 inches -1751mm, 75 inches -1954mm. When the stainless steel warp stop plate is subjected to the tension of the warp yarn of the fabric, it is suspended on the warp stop strip of the weaving machine. When there is a broken warp yarn, it sinks by gravity and blocks the normal swing of the swing rod below, thereby triggering the parking device to shut down.

120mm Warp Droppers stainless steel textile equipment

The packaging of stainless steel Warp Droppers is wooden boxes, with 20000 pieces per box. The packaging of each paper box (length, width, height 125mm * 50mm * 65mm) is 1000 pieces (200 pieces per bundle), and the weight of each box of 0.2mm thickness stop plates is 1660 grams.

Stainless steel stop plates 120 and 165 Warp Droppers

The above picture shows a comparison between the warp steel Droppers (120mm in length) of an old-fashioned shuttle loom and the warp stopping plate (145mm in length) of a large rapier loom. Textile processing enterprises and manufacturers from all over the country who need to purchase stainless steel warp stoppers, 120mm warp droppers, stainless steel accessories for weaving machines, 1515 weaving machine accessories, 1511 textile accessories and other products can contact Mr. Yang from our company for negotiation. Welcome to visit!
