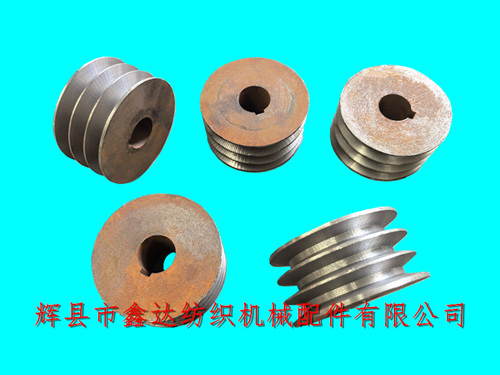

Huixian Xinda Textile Machinery Parts Co., Ltd. provides textile motor pulley D4 motor pulley 3233-3240 pulley. Loom  Belt Pulley,The inner diameter of the weaving machine motor pulley is 28mm, and the outer diameter includes 80mm, 85mm, 90mm, 95mm, 100mm, 105mm, 110mm, etc. Their part numbers range from 3233-3240, 3250-3255 (1515/GA615 type), and the total thickness of the three groove motor pulley is 47mm.

The D4 motor pulley is mounted on the motor shaft of the weaving machine using a hook key. Each weaving machine uses one pulley, and the width of the keyway of this pulley is 8mm. Its material is cast iron HT15-33. On the 1511 loom, the diameter of the motor wheel directly affects the speed of the loom.

The V-belt matched with the motor pulley is of type A. The 1511 type uses A1700 specification, while the 1515 and GA615 weaving machines use A2286 specification; The machine speed corresponding to the 1511-D4 (φ 85mm) motor wheel is approximately 158 revolutions per minute.

The 1511 type speed corresponding to a pulley with a diameter of 100mm is approximately 188 revolutions per minute. Due to the larger diameter of the 4100-2 (triangular pulley on the bent shaft) of 1515 and GA615, the machine speed corresponding to motor pulleys with the same diameter will decrease.

If you need to purchase motor wheels D4, 3233 pulleys, 3234 pulleys, 3235 motor wheels, 3236 motor pulleys, and other woven machine accessories, please contact Mr. Yang from our company for consultation.
