Huixian Xinda Textile Machinery Accessories Co., Ltd. provides warp stop accessories O101/O102 warp stop frame hanging arms for shuttle textile machines all year round. The warp stop frame hanging arms used by 44 looms are respectively installed on the outside behind the wallboards on both sides. They are made of pig iron HT15-33. O101 and O102 form left and right hands, which are used to hang the warp stop frame device. They are warp stop accessories for looms. One for each loom.

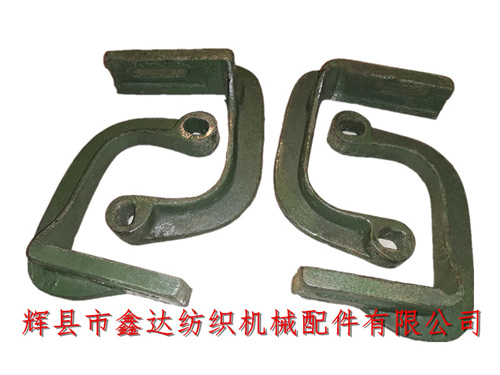

The above picture shows the front and back photos of loom warp stop accessories O101 and O102. The shape of the suspension arm of the warp stop frame is 19 cm long, 14.9 cm wide and 4.95 cm high. The chute is 15mm wide and 57mm long, and the weight of a single hanging arm and supporting foot is about 1.25Kg.

The above figure shows the side elevation of O101 and O102. Determine the front and rear positions of the arm support feet O3, O4 or O101 and O102 of the warp stop frame with a fixed gauge. Install the warp stop frame. After installing the O103 sizing block, determine the upper and lower positions of the hanging feet O102, O102 or O15 of the warp stop frame with a fixed gauge, and correct the front and rear levels in the middle of the two toothed rods O34 of the warp stop frame.

When the bending shaft F38 is in the lower center, the shuttle is driven out from the switch side, the large radius of the warp breaking cam is upward, and the left and right positions are flush with the combined rod, fix the position of cam O13 (warp breaking cam correction). Price information and detailed size parameters of warp suspension arm O101 and O102 of textile machine accessories. If you need to obtain or purchase textile warp suspension frame, loom warp suspension frame, warp suspension arm and warp suspension accessories, please contact Mr. Yang of our company!
