1515 Temple Bracket And Seat Cover-15 ring edge support box accessories and extended extension base cover are generally used in 1515-110 inch and 100 inch wide K-type looms, and can also be used in narrow width looms to weave special (heavy) fabrics. The main purpose of edge support box is to cooperate with 15 ring copper prick shaft (edge support prick shaft) to tighten the fabric door width. According to the design principle of shuttle looms, they are generally divided into two specifications, i.e. switch side and shuttle changing side, for intuitive identification The other way is to see if the side brace cover has a tail.

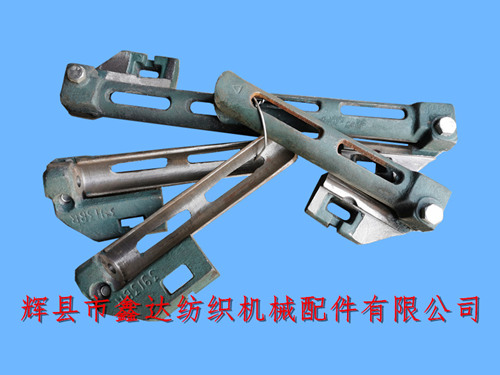

There are two observation holes on the top of the side support extension cover, which are rectangular. During the normal operation of the loom, you can clearly see the rotation of the cloth surface following the copper thorn shaft. The picture above is the side support box (with the tail of the scissor hammer) used for changing the shuttle side.temple bracket seat,temple cover,1515 Temple Bracket And Seat Cover.

The picture above shows the switch side bracket box (composed of the bottom bracket and the upper bracket cover), which is made of gray iron HT15-33. The switch side and the shuttle changing side bracket cover constitute the left and right hands.

The accessories of the old loom, such as the accessories of the side support cover, the parts of the extension rod, the side shear hammer and the screws, are the common vulnerable parts of the loom, with 10 sets for each string and 20 sets for the starting order.

If you want to buy Temple Bracket And Seat Cover-15 ring edge support box accessories and extended extension seat cover, shuttle edge support box, extended edge support cover and other products, you can contact our company, welcome to consult and discuss cooperation matters!
