Huixian Xinda Textile Machinery Accessories Co., Ltd. provides shuttle textile machine parts - bending slide plate adjusting hoop M17 For 1515 Looms. Textile machine accessories M17 are connected with 3229 (bending slide plate foot). The surface abrasion of the hanging spring is less than 2.5mm, the inner hole diameter of the adjusting hoop is 22mm, and the back square table is convenient to adjust the angle and the torque of M18 spring, The overall dimension of the square table top is 21.4mmx21.4mm.

1515-3229R/L sliding plate foot, M16 bending sliding plate, M18 bending sliding plate spring, M17 adjusting hoop and other accessories are part of the lifting device of loom. The back of 1515-M17 has two types of holes and no holes. The diameter of the holes is 15mm, which is affected by the mold, and they do not affect the use effect.

The difference between M17 and F17 lies in the distance between the hoop head of M18 torsion spring. The distance between the hoop head of F17 and the middle hole should be greater than the distance at the same position of M17. F17 is used together with F34 / 35 shuttle rod torsion spring, and M17 is used together with M18 bending sliding plate torsion spring.

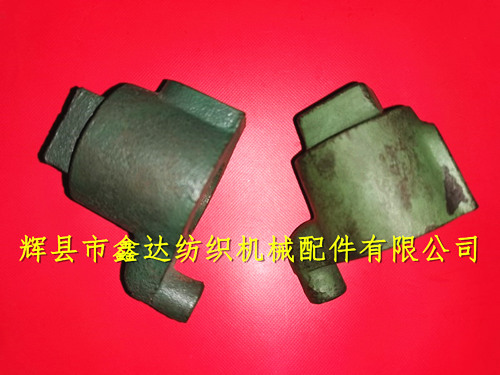

There is an M10 fastening screw hole under the adjusting hoop of 1515 bending sliding plate, which is used to control its synchronous rotation with 3229. As shown in the figure above, the diameter of the hanging head in the lower left corner is 13mm, the overall length is about 53mm, and the weight of a single accessory is about 0.2kg. If textile enterprises need to purchase 1515 bending slide plate adjusting hoop M17 accessories and other textile machine parts, please contact Mr. Yang of our company for details.
