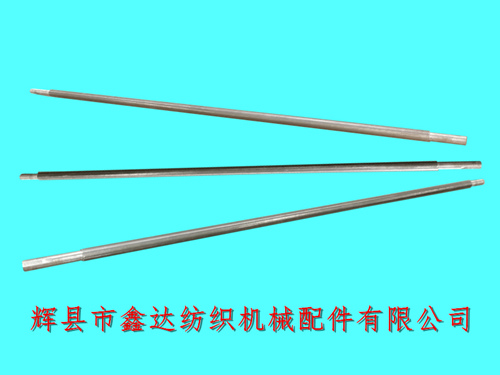

Huixian Xinda Textile Machinery Parts Co., Ltd. provides a 56 inch weaving machine reed clamp shaft 3107/3219 (1515). The middle diameter of the loom reed clamp shaft is 24mm, and the diameter of the two end shaft heads is 18mm. The length of the reed width is proportional to the length of the reed clamp shaft. The total length of the 56 inch reed clamp shaft is 1646mm, and the length of the 59 inch reed clamp shaft is 1718mm, 63"; The length of the reed clamp shaft on the 1500mm loom is 1820mm, the length of the 67 inch reed clamp shaft is 1921mm, and the length of the 75 inch reed clamp shaft is 2124mm.

The material of the reed clamp shaft is A3 cold drawn material, and the lateral movement during installation is not more than 0.4mm. The height distance between the reed clamp shaft 3219 and the rocker shaft 3201B on the shaft is 604mm; The shaft head of the weaving machine's reed clamp shaft has M6 or M8 wide keyways (usually 8mm wide inside the keyway), and the fixed bending slide slide rod 7501 (guard rail collision stop arm) is connected to the inner side of the 56 inch weaving machine's reed clamp shaft 3107/3219 (1515) and used in conjunction with the K5 reed clamp shaft sleeve.

The reed clamp shaft can be divided into 1515 and GA615 types according to the weaving machine model, with the common being GA615 type 3107; The bending of the shaft of the reed clamp shaft shall not exceed 0.1mm, the wear of the shaft neck shall not exceed 0.3mm, and the total eccentricity with the sleeve K5 (tightening of the support head screw) shall be less than or equal to 0.25mm. The depth of the support head screw imprint on the 3219 shaft shall not exceed 0.8mm, and the fit gap with the reed clamp shaft sleeve K5 shall not exceed 0.1mm. The wear and tear with the reed clamp shaft hanging foot K26 shall not exceed 0.4mm for major repairs and 0.8mm for minor repairs.

The horizontal tolerance between the weaving machine's reed clamp shaft 3107 and the hanging foot K26 is 0.08/150mm, with a lateral movement of 0.4mm. Flexibility requirements: when the bending slide plate M16 is not working, lift the shuttle rod K68 and the leather used for the shuttle rod on the back of the shuttle box by 20mm, which can automatically return to its original position. The gap between the rear side and the reed clamp shaft hanging foot K26 is less than 0.2mm (after installing the reed clamp shaft hanging foot, it does not affect the flexibility of the reed clamp shaft); If textile factories and weaving processing manufacturers in various cities need to purchase reed clamp shafts, 56 reed clamp shafts, 1515 reed clamp shafts, and weaving machine accessories, please contact Mr. Yang from our company.
