Huixian Xinda Textile Machinery Accessories Co., Ltd. provides 1511 / 1515 / 1515k loom switch side shuttle box bottom plate K14/3307/2408.Switch Side Thrash Plate H.S K14/3307/2408, Loom accessories K14 (shuttle box bottom plate length 540mm and width 78mm) are 1511 type, 3307 (length 581mm and width 79mm) are shuttle box bottom plates of 1515 and GA615 looms, and switch side bottom plate 2408 (length 600mm and width 80.5mm) is used by 1515k loom, in which the wood screw holes of 2408 and 3307 are the same, The number of shuttle box bottom plates on the switch side of each loom is 1 pcs.

As shown in the above figure: 1515K-2408L, 1515-3307R and 1511-k14R are in sequence from top to bottom, where R is the right hand and l is the left hand. There are 7 wood screw holes in the bottom plates of the above three shuttle boxes. Some manual shuttle changing looms use the same shuttle box bottom plates on both sides (3308 or K15 are not used). During installation, it is necessary to check that the angle between the shuttle box bottom plate and the reed foot of the loom is 86.5°, the allowable difference is 0.1mm, and only more than 86.5 degrees are allowed (checked with setting gauge and micrometer).

Determine the front and rear positions of the Switch Side Thrash Plate H.S (K14, 3307 and 2408) on the reed dragon with the shuttle way setting gauge, make the rear edge of the inner end of the bottom plate 27mm away from the rear side of the reed, insert the iron tenon of the bottom plate into the groove of the reed, and check the bottom plate 86 section by section with an angle level 86½° inclination angle, the gap between the setting gauge and the floor loom, generally it is required that 0.08-0.1mm micrometer cannot be inserted. 2408 is commonly used for 100 inch and 110 inch loom equipment of 1515k model.

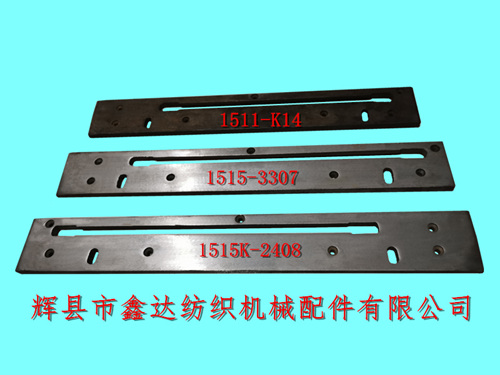

The above figure is the back view of the bottom plate of each shuttle box. Their thickness is the same, which is 13mm. The weight (single) from top to bottom is 3.15kg, 2.65kg and 2.4kg respectively, with 5 in each bundle. The bottom plate of the shuttle box is divided into switch side and hangar side. The standard specification of wood screws is M6*50mm.

The surface of textile shuttle box bottom plate, loom bottom plate and switch side bottom plate is in a slope shape. The shuttle walking plate is butted inward from the outer end slope of reed frame wooden dragon. Their use is based on the machine model and does not depend on the door width (some narrow widths of 28 inches, 32 inches and 36 inches are designed as 1515). If you need to buy 1511 shuttle box bottom plate, 1515 loom bottom plate, 1515K switch side bottom plate, GA615 shuttle box bottom plate and other products, or consult the detailed dimensional parameters, Please contact Mr. Yang of Xinda Textile machinery accessories for consultation.
