Shuttle Loom Nylon Part 1515-3442 Bushing
Shuttle Loom Nylon Part 1515-3442 Bushing time:2025-03-23 20:08:28 click:7128 keywords:Nylon parts,Semi-circular Bushing,Nylon Bearings,bushings,Shuttle Loom Part,Textile Equipment
description:

Huixian Xinda Textile Machinery Parts Co., Ltd. provides 1515-3442 semi-circular bearing textile bushings for Shuttle Loom (weaving machines). 3442 semi-circular plastic bearings are used to connect the 1515 weaving machine with the rear pole support feet of 3400-5 and 3400-6, and are connected to 4100-5 and 4100-6 on GA615 weaving machines. The inner diameter of 3442 bushings/bearings is 34mm, the total length is 56mm, and the protruding clamp diameter is 8.3mm. The material is industrial polypropylene. For other detailed parameters, please contact Mr. Yang from our company for consultation.

Weaving machine plastic accessories 3442

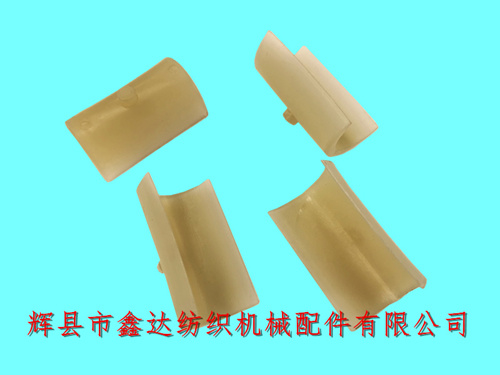

The above picture shows a 1515-3442 semi-circular bushing with nylon bearings, thin curved edges, and a 5mm thick center position. The previous material was nylon 1010, which appears yellow in appearance. Each weaving machine uses 2 pieces of nylon. The back of the 1515-3442 semi-circular bearing textile bushing is fixed in the opening groove of the rear pole support foot.

Textile accessory 3442 semi-circular bearing

The nylon bushings for weaving machines mainly include K77x78 hand holding bushings, K79 hand holding bushings, 7205 outer sleeve nylon bushings, 7207 inner sleeve bushings, 7212 rocker arm bushings, K5 reed clamp shaft sleeves, and other products.

Textile Nylon Parts_3442 Weaving Machine Half circle Bearing_ Weaving Machine Materials

The packaging method is self sealing bags, with 20 pieces per bag.Shuttle Loom Nylon Part 1515-3442 Bushing, If you need to purchase products such as nylon parts for shuttle looms, semi-circular bearings, GA615 nylon bearings, 1515 bushings, 1511 weaving machine materials, textile equipment, etc., please contact Mr. Yang from our company for consultation.

3442 Textile Accessories Plastic Parts
