Loom Bridge Gear Mandrel (L00-5 Screw)
Loom Bridge Gear Mandrel (L00-5 Screw) time:2022-07-08 09:07:31 click:2841 keywords:Loom screw, loom spindle, loom gear
description:

Huixian Xinda Textile machinery accessories provide a variety of loom screws, loom spindle, loom gear (bridge gear, change gear, let off gear, etc.). Old loom accessories - axle gear mandrel (L00-5 screw core), which is connected with the axle gear L11 and L10 and fixed on the L8 sector foot. The total length of axle gear mandrel l00-5 is 135mm, and the tail diameter is 20mm. It is composed of L34 and l34w-1, and the material is A3. Each loom uses one piece, which is installed on the winding part of the loom.

1515 textile machinery parts L00-5

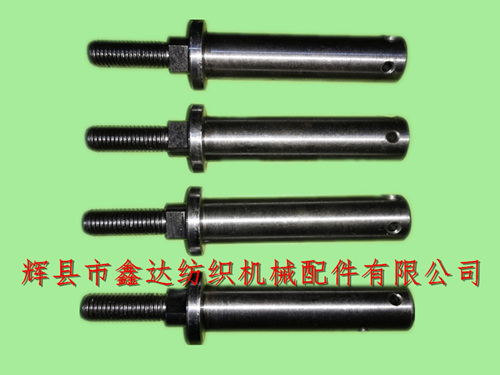

There are four holes in the tail of the textile bridge gear mandrel. The straight hole is used to fix the stop pin, and the inclined hole is the oil filling hole. The diameter of the cone is 30mm, the screw of the shaft head is M12, and the thickness of the section platform is 11.6mm. It is suitable for 1511, G611, GA615, 1515, etc.

GA615 textile machine accessories L00-5 axle gear mandrel

The spindle of textile bridge gear (L00-5) belongs to the take-up part of loom. The take-up failure, sluggish rotation of gear train and bad tooth return are collectively referred to as take-up failure. These failures will cause thin and dense road defects.

1511 loom accessories L00-5

The reed swings from back to front in the swing movement. The reed foot 3244 drives the coiling finger L2 to swing forward through the guide groove foot L1. The coiling rod L4 is installed on the inner side of the wallboard. Its upper part is equipped with a coiling hook L5 facing the front of the machine. The lower semicircle groove is sheathed on the coiling finger L2. When the coiling finger swings forward with the reed foot, it pushes the lower part of the coiling rod to swing forward of the machine, and its upper coiling mechanism moves backward It drives the take-up serrated gear L7 to rotate one tooth, and drives the licker roller gear L13 to rotate through the standard gear L33, the change gear L33, the core pinion l00-4, the bridge gear L10 and the bridge pinion L11.

56 textile accessories short shaft L34

If you need to buy loom accessories, bridge gear mandrel (L00-5 screw core assembly), loom screw, loom mandrel, loom gear and other accessories, please contact Mr. Yang of our company for consultation!
