Shuttle Loom Parts
Treadle Bowl A00-3(A5+A48) For 1511 Loom
Treadle Bowl A00-3(A5+A48) For 1511 Loom time:2025-06-30 10:09:54 click:11330 keywords:Treadle Bowl,Shuttle Loom Parts, 1511 Loom
description:

The A00-3 (A5+A48) textile parts weaving machine Treadle Bowl is provided by Huixian Xinda Textile Machinery Parts Co., Ltd. The material of the A5 rotor is HT15-33, and the material of the internal lining A48 is powder metallurgy. The outer diameter of the weaving machine accessory tread rod rotor is 64mm, the inner hole diameter is 22mm, the total thickness is 32mm, and the width of the polished surface is 24mm. The size of the A48 rotor lining is: outer diameter is 28mm, inner hole diameter is 22mm.

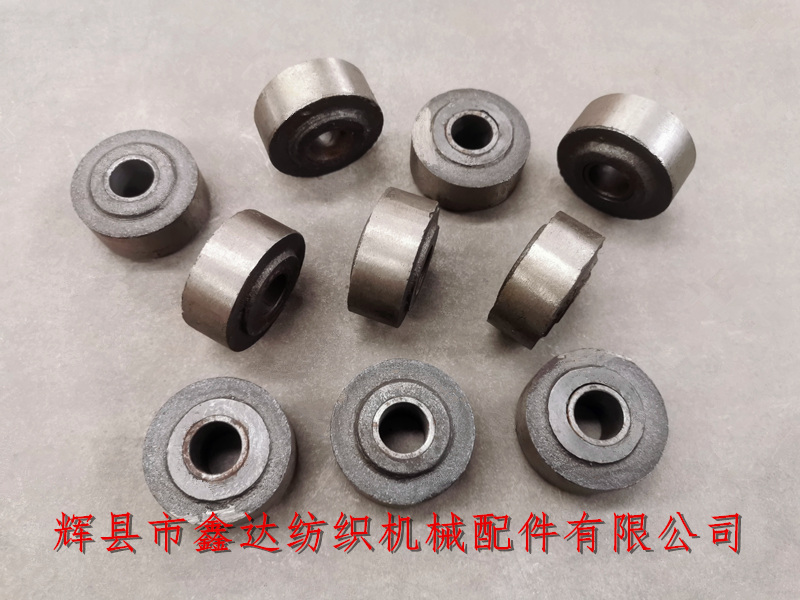

Cold hard rotor A00-3_ Weaving machine treadle Bowl_ Woven fabric machine accessories

The rotor A00-3 of the pedal lever should be in close contact with the surface of the pedal E3. If the surface of the iron rotor is not round or uneven, it should be replaced; The surface wear radius of rotor A00-3 shall not exceed 1.6 millimeters. If you want to know the size, polishing process, cold hardening treatment and other details of the loom treadle bowl, you can contact our company.

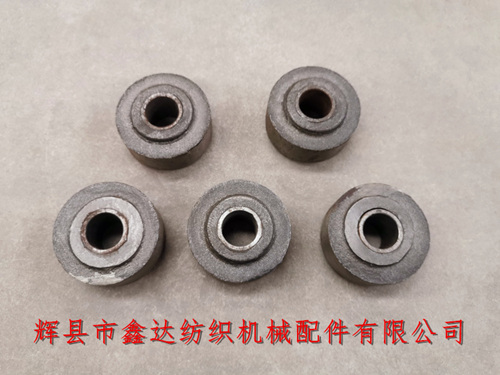

1511 Loom Rotor A00-3_China Weaving Machine Accessories _Textile Parts

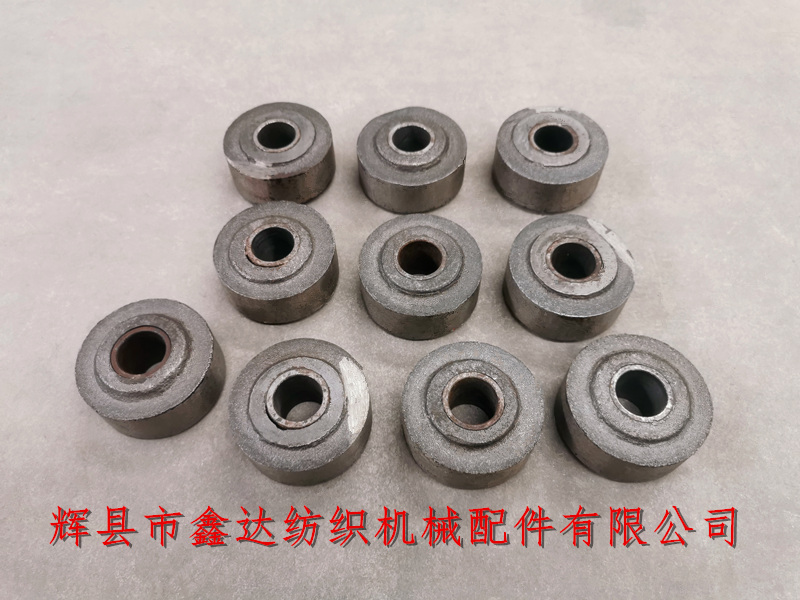

The difference in the outer diameter of the rotor on the same loom should not exceed 0.4mm, and the gap between the rotor and the core shaft A6 should not exceed 0.4mm for major repairs and 0.8mm for minor repairs. The color of the A00-3 (A5+A48) rotor on the weaving machine is gray (see figure below), which is the original color of the gray pig iron blank casting.

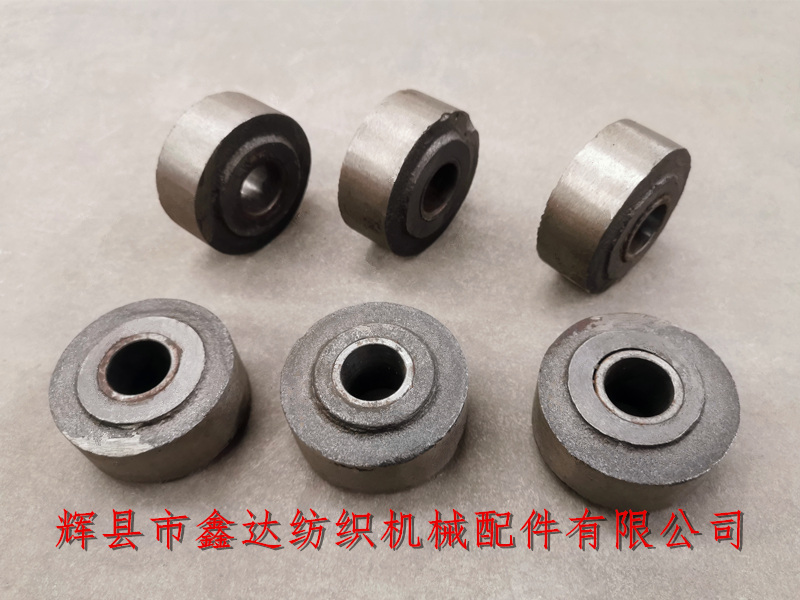

44 inch Power Loom Treadle Bowl  A00-3

Each weaving machine uses 2pcs A00-3 Treadle Bowl, which are installed in the rotor box in the middle of the tread rod; If you need to purchase weaving machine iron rotors, tread rod rotors, textile parts, 1511 weaving machine tread rotors and other products, please contact Mr. Yang from our company for consultation.
