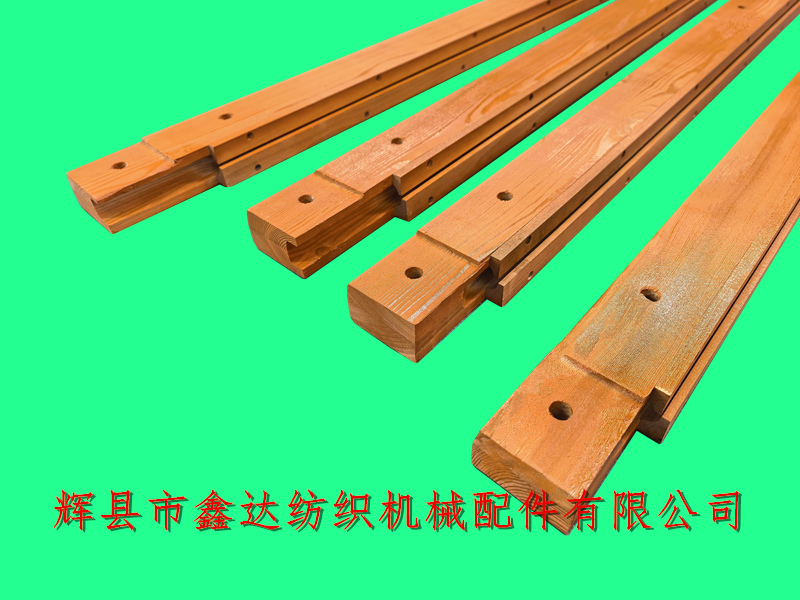

Huixian Xinda Textile Machinery Parts Co., Ltd. provides Q00-1 loom reed cap with wooden components of single beam 1511-56/54 inches loom.Reed Cap,Wood Parts,Loom Parts,Loom Cap,Textile Wooden Parts, The single beam weaving machine belongs to the 1511 type shuttle looms. The Q00-1 reed cap assembly is composed of Q9 reed cap (larch material), Q10 reed cap front clamp, and Q18 reed cap rear clamp. The reed cap is divided into left and right hands and is determined based on the direction of the steel reed box.

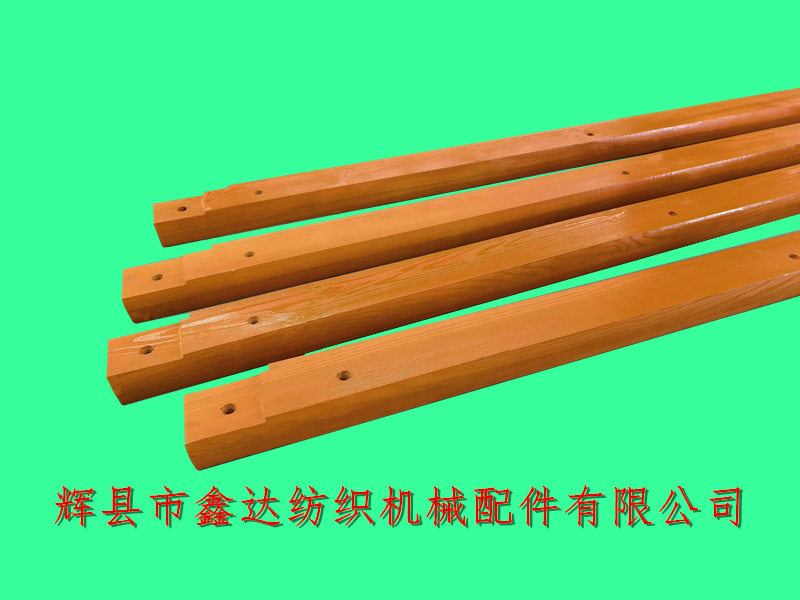

The above picture is a photo of the upper curved surface and hole position of the reed cap Q00-1 (1511-56 inch model). The two ends are screw holes for fixing the reed cap, and the middle is a screw hole for fixing the anti flying shuttle rod or base.

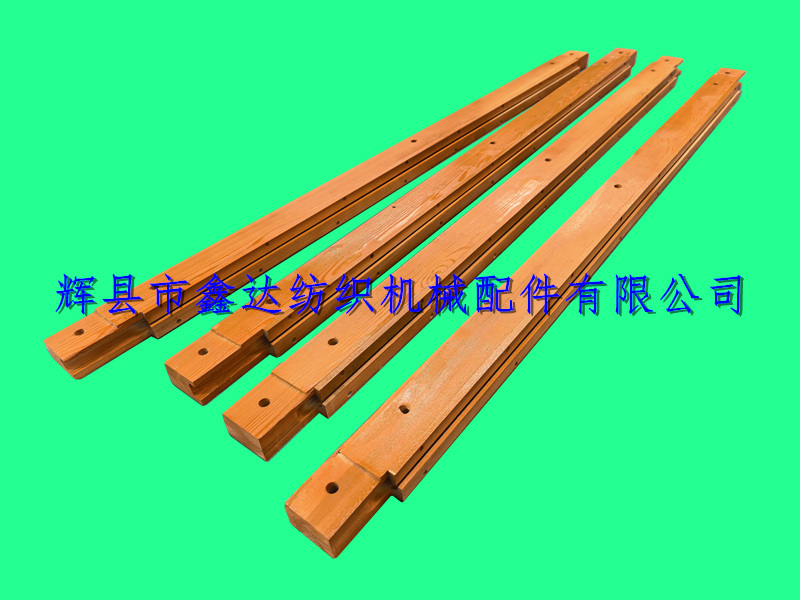

The wooden strip under the loom reed cap forms a height difference to increase the strength of the steel reed when striking the fabric surface. When the steel reed hits the weft yarn in the fabric surface, it will follow the reed clamp to step back and buffer. In addition, the wooden components of Q00-1 Reed Hat Weaving Machine, with a single beam size of 1511-56/54 inches, can also be provided in combination with 1515 or GA615 types. Other specifications or sizes of side panels, shuttle boards, reed frame wood, control wood, hanging panel and other wooden parts can also be consulted with our company's contact person.

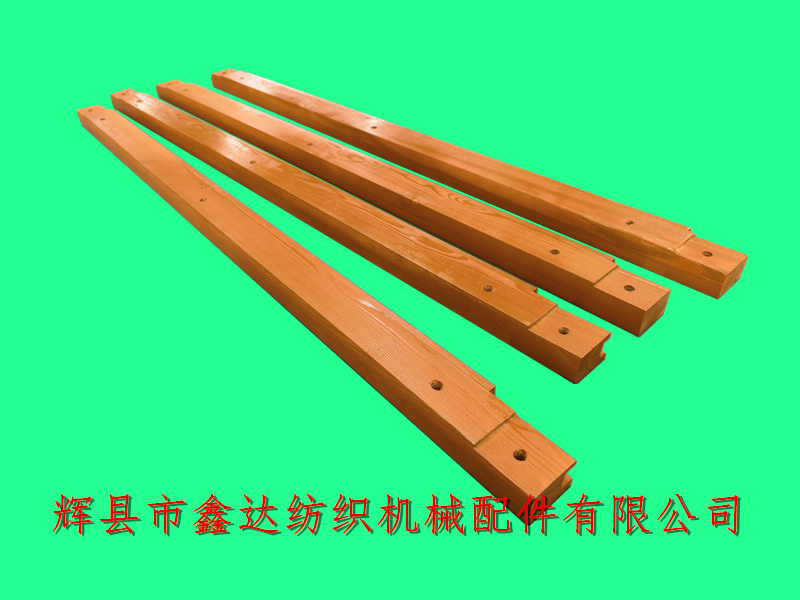

The packaging for the wooden component Q00-1 (reed cap assembly) of the weaving machine is: 10 sets per bundle, 5 sets for the left hand and 5 sets for the right hand; Its two ends are respectively fixed on the reed seat foot switch side and the shuttle side of the weaving machine.

If you need to purchase 54 inch reed caps, 56 inch reed caps, single beam weaving machine accessories, shuttle weaving machine wooden parts and other products, please contact Mr. Yang from our company for consultation.
