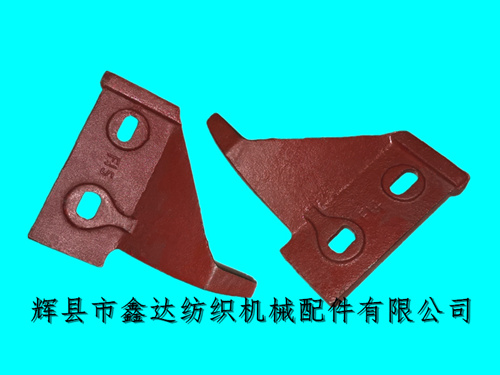

Picking Stick Cap F14/F15 Weaving Machine Parts,The materials of shuttle loom foot cap F15 and F15 are pig iron HT15-32 and ductile iron QT, which are applicable to shuttle looms of 1511, 1515, GA615 and other models. Each loom has one foot cap, which is installed below the outside of the loom wallboard, connected to the screw core of F18 shuttle loom, and two bolts M12X45, nuts BM12, and washers 12, The wear clearance between the hook plate corner cap and the hook plate screw core (F18) is not more than 1.6mm.

F15 shuttle board foot cap and F14 foot cap constitute left and right hands. The weight of a single loom foot support F14 is about 1.55KG, and the weight of the two feet is equal.

Model 1515 automatic shuttle changing loom is a series of wide width looms widely used in China. The machine has many parts, complex assembly specifications, and the names, materials, pieces, assembly specifications, abrasion degree, installation tools, and bolts, washers, pins, etc. for looms.

The external dimensions of F15/F14 shuttle board foot cap used for 1515 plain tread opening loom are 186mm long, 161mm wide and 27.5mm thick. The dimensions of the two axle holes of the loom foot bracket are 26mmX17.5mm (F18 flat head is installed) and 27mmX14mm respectively.Picking Stick,Picking Stick Cap,Shuttle Loom,Weaving Machine Parts.

The packaging of the shuttle board foot caps F14 and F15 is: 5 for each bundle (as shown in the figure above), and the front smooth surface is installed in contact with the loom side plate (lower bar). If domestic textile manufacturers and weaving manufacturers need to purchase shuttle board foot caps F15 and F14 for looms, cast iron accessories for shuttle looms, 1515 looms, 1511 treadmill accessories and other products, please contact Mr. Yang of Xinda Textile Accessories!
