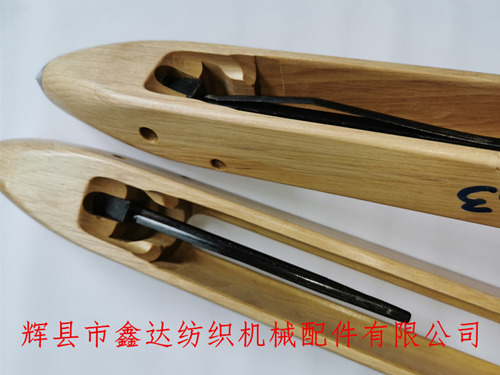

370 small wooden shuttle Thailand textile machine accessories (textile spare parts) mainly use small shuttle head with three porcelain eyes design. The total length of Thailand small wooden shuttle is 370mm, the outer width of shuttle bottom is 40.8 mm, the height of shuttle is 31mm, the length of inner cavity is 24.2 cm, the model of wooden shuttle is R110563 and L110563. The wood shuttle accessories of textile machinery are mainly used for electric loom, and the original machine is produced and processed with Japanese logs The wood shuttle is made of compressed wood of birch, Cyclobalanopsis glauca, chestnut and wood.
The diameter of the weft groove of the small wooden shuttle is 16 mm, the inner hole of the porcelain eye is 3.5 mm, and the rod length of the shuttle core is 12.1 cm. The function of using a spring leaf is to ensure that the inner hole of the weft tube is tightened and prevent the weft tube from rotating and falling out when the shuttle is reciprocating.
The side wall thickness of this Thailand wooden shuttle is 5.5mm (the outer baffle side of the shuttle box, which has outlet slot) and 6mm (with 86.5 ° side, that is, the side that fits the back plate of the shuttle box). It is divided into left-hand shuttle and right-hand shuttle.
370 small wooden shuttles are used with small shuttle boxes. The length of the matching weft bobbins is 20 cm or 20.5 cm. The three porcelain eyes are used to prevent weft shrinkage. The packing of textile small wooden shuttles is carton, 50 pieces / box, with an initial order of more than 300 pieces. The normal delivery period is about 40-45 days.
If you need to buy small wooden shuttles, Thai wooden shuttles, textile machine materials, 370 small wooden shuttles, Thai textile machinery materials, textile wood accessories and other products, you can contact our company for consultation and cooperation. We welcome Thai textile mills and textile enterprises to contact and negotiate!
