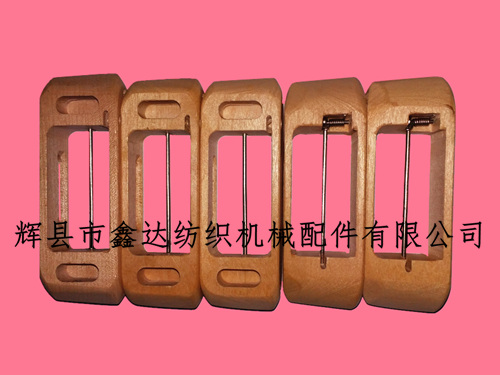

Our company specializes in providing customized processing services for small flat shuttles of shuttle weaving belts. Trademark wooden shuttles and multi-layer shuttle boxes are generally made of flat shuttles. The shuttle length is 97 mm, the thickness of one side is 21 mm, the thickness of the other side (front bend) is 19 mm, the bottom of the shuttle is horizontal, and the top of the shuttle is slope (shuttle shape according to the loom). To ensure the good trafficability of the small shuttle.

The width of the small flat shuttle is 32.7mm. The shuttle is double shuttle box ribbon, three shuttle box ribbon loom equipment modification accessories, professional spindle spindle processing of textile shuttle, slotting position is accurate, and the radian processing of elastic spring hole is smooth.

For small shuttles of looms, we require more than 100 (the same specifications), 30-35 days of delivery. The shuttles are made of poplar, birch and other materials. The materials can be used according to customer's requirements.

Front shuttle with curved bow fittings is used for ribbon weaving. Each shuttle box has 4 flat shuttles, 3 vertical and 1 flat. Complex cap belt weaving is realized. The door width of multi-color weft-mixing loom is determined by shuttle box and shuttle layer.

Ribbon Machine Material Accessories - 100 small shuttles per box, packaged as cartons, shuttle loom processing supporting manufacturers - Xinda also provides more than 60 kinds of shuttle products ordered, welcome domestic and foreign customers to consult and negotiate business!
