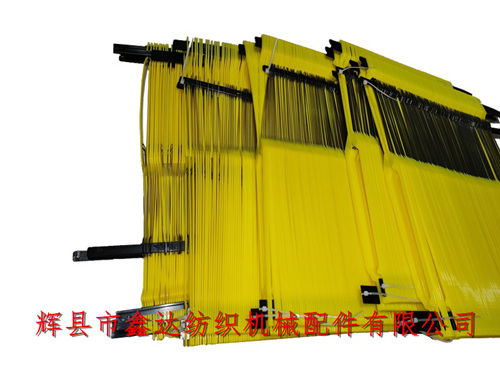

Huixian Xinda Textile Accessories Co., Ltd. provides 331J Leno Heald Textile Plastic Heald Parts (thickness: 1.5mm). The Leno heald can be divided into C-type, J-type and O-type specifications according to the shape (judged according to the shape of the movable head hanging on the heald). According to the material, it can be divided into plastic leno heald and stainless steel leno heald. Their inner length is 280mm, 331mm, 355mm and 380mm. The thickness of the middle position of plastic gauze Brown is divided into 1.5mm and 2.2mm.
The above figure shows the movable head of J-type plastic yarn heald, which is half open in shape. There are two kinds of red and yellow. Red is 2.2mm thick and yellow is 1.5mm thick. They refer to the thickness of the plastic body in the middle.
The above figure shows the steel sheet part. The specification is flat angle opening. In addition, there are specifications such as sharp angle opening, sharp angle closing and flat angle closing. They can be assembled and used with the main body of the plastic gauze heald. The gauze heald is the equipment accessories used for the twisting of the textile machine.
331J type leno heald is processed with imported plastic, with bright appearance, good wear resistance and good flexibility. The shape of jacquard hemmed harness is similar to that of yarn roller harness. It is divided into 3-wire hemmed harness and 4-wire hemmed harness. Its length mainly includes 680mm, 562mm, 730mm, 780mm and 790mm.
Plastic hemmed heald and gauze heald are textile plastic accessories, belonging to one kind of textile equipment products. The packaging method is 100 sets / string, and the single set of gauze and gauze heald with a thickness of 1.5mm is about 6.8 G. If you need to know the detailed parameters of yarn heald, plastic heald, textile heald and heald, or purchase 331J Leno Heald Textile Plastic Heald Parts (thickness: 1.5mm), please contact Mr. Yang of Xinda Textile accessories for negotiation.
