Huixian Xinda Textile Machinery Accessories Co., Ltd. provides L28 hook head screws, loom hardware accessories, textile side brace bolts. Below the hook head is a 2 cm long M8 screw. The total length of L28 hook head screws is 62.5 mm and the width is about 9.2 mm. It is processed by stamping forming process. The material is steel 20, which is connected with L21/L22 side brace slider. Two screws are used for each loom.

We usually classify some special bolts (screws) used in the loom as loom hardware accessories or textile hardware accessories. They are generally formed by die stamping, forging and extrusion. Most of them are used to fix or support and have the purpose of bearing up and down.

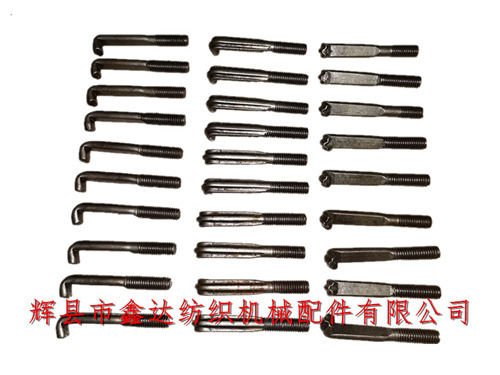

As shown in the figure above, L28 hook head screw is stamped on the left and forged on the right (regardless of the wire rolling process). The forged hook head adopts the method of square section, while stamping is extruded from the top and bottom of the hook head bolt, and its shape design also increases the bearing strength of the hardware accessories of the loom.

Textile hardware accessories and loom hardware - L28 is applicable to loom equipment of 1511, 1515, GA615 and other doors. Its packaging quantity is 100 pieces per bag, and the weight of each bag is 1.85kg. When installing the hook head screw (bolt) L28, do not expose the surface of the side brace 3906 or L44.

Textile mills, textile enterprises, cotton mills and trading companies all over the country, if you need to purchase L28 hook head screws, loom hardware accessories, textile side brace bolts, other hook head screws, loom hardware, extension rod bolts and other products, please contact Mr. Yang of Xinda Textile accessories for consultation.
