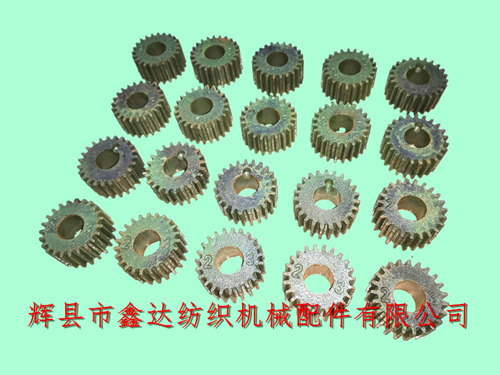

Huixian Xinda Textile Machinery Accessories Co., Ltd. provides 23 teeth weft dense wheel transformation gear accessories for old shuttle weaving machines. Weft Density Wheel,Weft Density,Weaving Spare, L33-23T refers to 23 teeth transformation gear (weft dense wheel) for 1511, GA615 or 1515 old weaving machines. The outer diameter of 23T weft dense wheel is 44.4mm, the thickness is 21.6mm, and the inner hole diameter is 18mm. It belongs to textile straight gear and is a shuttle loom accessory. The diameter of the circular groove on the side of the inner hole is 6mm.

One side of the 23 teeth change gear (shuttle machine accessories density wheel) is provided with a circular clamping groove, which is used to connect the L00-4 core pinion or l00-6 change gear core. Generally, each plain loom uses two weft density wheels. Textile gears are divided into spur gear, bevel gear and helical gear (worm gear). They are used in the transmission parts of the machine, including let off device, coiling device and so on.

Packaging of loom change gear-23 teeth weft dense wheel: the shuttle machine accessories have no outer packaging. There are 20 pieces in each string, and the weight of a single 23 teeth wheel is about 0.11kg. The production process: it is made of pig iron HT15-33 sand casting, and the teeth are made of pig iron cast teeth, which are processed by inner hole bench drilling.

L33-23 change gear is a general component of loom, which can be adapted to 1511, 1515 and GA615 door looms to control the density of fabric weft.Weft Density Wheel,Weft Density,Weaving Spare, The selection of weft density wheel gear needs to be calculated according to its calculation formula. The key to its accuracy is the weft shrinkage of different fabric materials (2% - 3%). Buy 1511 weft density wheel, 1515 weaving machine, GA615 change gear, 1515k loom gear and other accessories, please contact Mr. Yang of our company for details.
