Xinda Textile machinery parts supply all kinds of shuttle textile wood products, wood parts, loom wood parts lifting back plate, etc. 1515 3312xQ7 lifting back plate, 1511 Q6xQ7, GA615 2106x211, they are all composed of shuttle box lifting back plate and movable back plate (tongue), which are installed on the reed frame wood (Dragon) sley of the loom. The whole set of two combination parts are divided into left and right fingers There are left and right. Textile wood equipment, weaving machine wood accessories - Xinda.

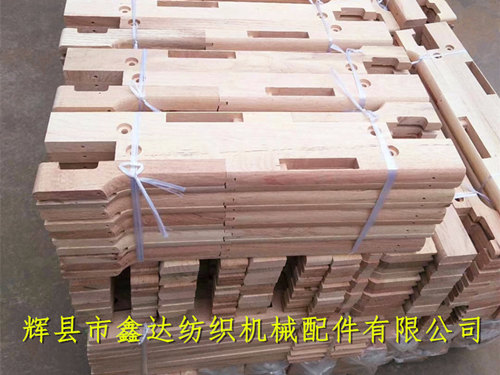

Weaving machine wooden accessories - 1511 type q6xq7 shuttle box lifts the back plate for packing outlet, 30 sets for each box. The total length of Q6 lifting backplane is 436mm, which is connected with K42 and k43; the length of Q7 movable backplane is 244m, which is connected with Q6. Generally, it is made of elm, birch, chestnut, etc.

Textile and wood products accessories - model 1515 lifting back plate 3312 has a length of 476mm, and the movable back plate borrows Q7. The distance between GA615 2106 and the wire 3313 at the bottom of the lifting back plate of the shuttle box is + 3mm, and the distance between the bottom edge and the bottom plate 3308 of the shuttle box is 9 + 0.8mm. The whole set of combined shuttle box back plate and shuttle box bottom plate are 86.5 degrees, and the difference is allowed to be 0.1mm (the difference is only allowed to be greater than 86.5 degrees by using the fixed gauge and the micrometer). The special process requirements can be checked and adjusted according to the shuttle requirements of different specifications.

Textile wood parts processing, weaving machine wood parts purchasing, lifting the back plate customized, weaving machine wood parts Lifting the back plate sales price, please contact Xinda Textile machinery parts company, we will serve you in good faith.
