Huixian Xinda Textile Machinery Parts Co., Ltd. provides Sulzer Projectile Feeder Lever D1 ES/MS 283, Textile Accessories-Sulzer Loom machine weft transfer lever 911 819 101 D9. The weft transfer lever has various specifications: 911 819 055 (RH D1), 911 319 477, 911 819 088 (L=280.9mm, D=10mm, D12), 911 819 109 (D12, L=281.5mm, D=10mm), 911 819 108 (L=287.2mm, D=10mm, D1, D12), 911 819 122 (L=286.2mm, D=9mm,  85"- 213"）, 911 819 123 (L=286.2 mm, D=9 mm, D2, 85 "-213"), 911 819 277 (L=282.5 mm, SL150 °), 911 819 146 (L=285.4 mm, SL150 °), 911 819 125 (L=287.2 mm), 911 819 089 (L=280.9 mm, SL150 °), 911 819 147 (L=284.4 mm, SL150 °), 911 819 127 (L=286.2 mm).

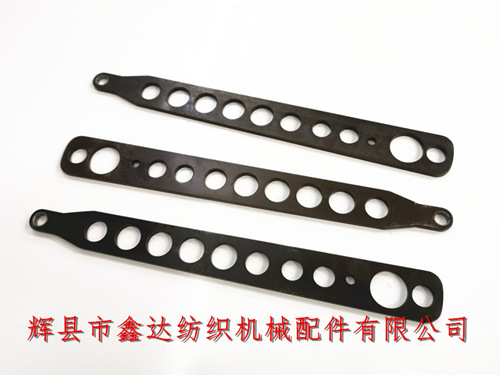

The parameters of the weft transfer lever in the above picture are: the total length is 286.2 millimeters, the front small head is lined with a sleeve, the inner diameter is 9mm, the outer diameter is 11mm, and its earning part number is 911819101

From the tail to the front, the diameter of the circular hole is 14mm, 24mm, 6mm, 13.8mm, 13.8mm 18mm, the overall thickness of the shuttle swing rod is 4.4mm, the width of the front small head is 16.2mm, and the width of the tail is 32.8mm.

If you need to purchase Sulzer weft conveyors, Projectile Feeder Lever,P7100 weft conveyor swing rods, TW Projectile accessories, textile Sulzer accessories and other products, please contact Mr. Yang from our company for consultation.
